# High-Level Interface¶

Contents

## PropsSI function¶

For many users, all that is needed is a simple call to the `PropsSI`

function for pure fluids, pseudo-pure fluids and mixtures. For humid air properties, see Humid air properties. An example using `PropsSI`

:

```
# Import the PropsSI function
In [1]: from CoolProp.CoolProp import PropsSI
# Saturation temperature of Water at 1 atm in K
In [2]: PropsSI('T','P',101325,'Q',0,'Water')
Out[2]: 373.1242958476844
```

More information:

- Table of inputs to PropsSI function
- More examples of the high-level API
- Documentation for all high-level functions exposed

All the wrappers wrap this function in exactly the same way.

For pure and pseudo-pure fluids, two state points are required to fix the state. The equations of state are based on \(T\) and \(\rho\) as state variables, so \(T, \rho\) will always be the fastest inputs. \(P,T\) will be a bit slower (3-10 times), and then comes inputs where neither \(T\) nor \(\rho\) are given, like \(p,h\). They will be much slower. If speed is an issue, you can look into table-based interpolation methods using TTSE or bicubic interpolation.

## Trivial inputs¶

In order to obtain trivial inputs that do not depend on the thermodynamic state, in wrappers that support the `Props1SI`

function, you can obtain the trivial parameter (in this case the critical temperature of water) like:

Props1SI(“Tcrit”,”Water”)

In python, the `PropsSI`

function is overloaded to also accept two inputs:

```
In [3]: import CoolProp.CoolProp as CP
In [4]: CP.PropsSI("Tcrit","Water")
Out[4]: 647.096
In [5]: CP.PropsSI("Tcrit","REFPROP::Water")
Out[5]: 647.096
```

Furthermore, you can in all languages call the `PropsSI`

function directly using dummy arguments for the other unused parameters:

```
In [6]: import CoolProp.CoolProp as CP
In [7]: CP.PropsSI("Tcrit","",0,"",0,"Water")
Out[7]: 647.096
```

## PhaseSI function¶

It can be useful to know what the phase of a given state point is. A high-level function called `PhaseSI`

has been implemented to allow for access to the phase.

```
In [8]: import CoolProp.CoolProp as CP
In [9]: CP.PhaseSI('P',101325,'Q',0,'Water')
Out[9]: u'twophase'
```

The phase index (as floating point number) can also be obtained using the PropsSI function. In python you would do:

```
In [10]: import CoolProp.CoolProp as CP
In [11]: CP.PropsSI('Phase','P',101325,'Q',0,'Water')
Out[11]: 6.0
```

where you can obtain the integer indices corresponding to the phase flags using the `get_phase_index`

function:

```
In [12]: import CoolProp.CoolProp as CP
In [13]: CP.get_phase_index('phase_twophase')
Out[13]: 6
# Or for liquid
In [14]: CP.get_phase_index('phase_liquid')
Out[14]: 0
```

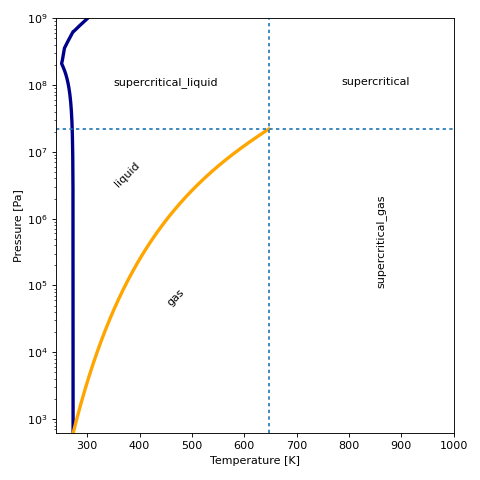

For a given fluid, the phase can be plotted in T-p coordinates:

(Source code, png, .pdf)

## Partial Derivatives¶

### First Partial Derivatives for Single-phase States¶

For some applications it can be useful to have access to partial derivatives of thermodynamic properties. A generalized first partial derivative has been implemented into CoolProp, which can be obtained using the `PropsSI`

function by encoding the desired derivative as a string. The format of the string is `d(OF)/d(WRT)|CONSTANT`

which is the same as

At the low-level, the CoolProp code calls the function AbstractState::first_partial_deriv(). Refer to the function documentation to see how the generalized derivative works.

Warning

This derivative formulation is currently only valid for homogeneous (single-phase) states. Two phase derivatives are not defined, and are for many combinations, invalid.

Here is an example of calculating the constant pressure specific heat, which is defined by the relation

and called through python

```
In [15]: import CoolProp.CoolProp as CP
# c_p using c_p
In [16]: CP.PropsSI('C','P',101325,'T',300,'Water')
Out[16]: 4180.6357765560715
# c_p using derivative
In [17]: CP.PropsSI('d(Hmass)/d(T)|P','P',101325,'T',300,'Water')
Out[17]: 4180.6357765560715
```

It is also possible to call the derivatives directly using the low-level partial derivatives functionality. The low-level routine is in general faster because it avoids the string parsing.

### Second Partial Derivatives for Single-Phase States¶

In a similar fashion it is possible to evaluate second derivatives. For instance, the derivative of \(c_p\) with respect to mass-based specific enthalpy at constant pressure could be obtained by

```
In [18]: import CoolProp.CoolProp as CP
# c_p using derivative
In [19]: CP.PropsSI('d(d(Hmass)/d(T)|P)/d(Hmass)|P','P',101325,'T',300,'Water')
Out[19]: -7.767989468924389e-05
```

where the inner part `d(Hmass)/d(T)|P`

is the definition of \(c_p\).

Warning

This derivative formulation is currently only valid for homogeneous (single-phase) states. Two phase derivatives are not defined, and are for many combinations, invalid.

It is also possible to call the derivatives directly using the low-level partial derivatives functionality. The low-level routine is in general faster because it avoids the string parsing.

### First Saturation Derivatives¶

It is also possible to retrieve the derivatives along the saturation curves using the high-level interface, encoding the desired derivative as a string just like for the single-phase derivatives.

Warning

This derivative formulation is currently only valid for saturated states where the vapor quality is either 0 or 1.

For instance, to calculate the saturation derivative of enthalpy ALONG the saturated vapor curve, you could do:

```
In [20]: import CoolProp
In [21]: CoolProp.CoolProp.PropsSI('d(Hmolar)/d(T)|sigma','P',101325,'Q',1,'Water')
Out[21]: 28.427795995713694
```

It is also possible to call the derivatives directly using the low-level partial derivatives functionality. The low-level routine is in general faster because it avoids the string parsing.

## Predefined Mixtures¶

A number of predefined mixtures are included in CoolProp. You can retrieve the list of predefined mixtures by calling `get_global_param_string("predefined_mixtures")`

which will return a comma-separated list of predefined mixtures. In Python, to get the first 6 mixtures, you would do

```
In [22]: import CoolProp.CoolProp as CP
In [23]: CP.get_global_param_string('predefined_mixtures').split(',')[0:6]
Out[23]:
[u'Air.mix',
u'Amarillo.mix',
u'Ekofisk.mix',
u'GulfCoast.mix',
u'GulfCoastGas(NIST1).mix',
u'HighCO2.mix']
```

and then to calculate the density of air using the mixture model at 1 atmosphere (=101325 Pa) and 300 K, you could do

```
In [24]: import CoolProp.CoolProp as CP
In [25]: CP.PropsSI('D','P',101325,'T',300,'Air.mix')
Out[25]: 1.1766922904316655
```

Exactly the same methodology can be used from other wrappers.

## User-Defined Mixtures¶

When using mixtures in CoolProp, you can specify mixture components and composition by encoding the mixture components and mole fractions by doing something like

```
In [26]: import CoolProp.CoolProp as CP
In [27]: CP.PropsSI('D','T',300,'P',101325,'HEOS::R32[0.697615]&R125[0.302385]')
Out[27]: 2.986886779635724
```

You can handle ternary and multi-component mixtures in the same fashion, just add the other components to the fluid string with a `&`

separating components and the fraction of the component in `[`

and `]`

brackets

## Reference States¶

Enthalpy and entropy are *relative* properties! You should always be comparing *differences* in enthalpy rather than absolute values of the enthalpy or entropy. That said, if can be useful to set the reference state values for enthalpy and entropy to one of a few standard values. This is done by the use of the `set_reference_state`

function in python, or the `set_reference_stateS`

function most everywhere else. For documentation of the underlying C++ function, see CoolProp::set_reference_stateS().

Warning

The changing of the reference state should be part of the initialization of your program, and it is not recommended to change the reference state during the course of making calculations

A number of reference states can be used:

`IIR`

: h = 200 kJ/kg, s=1 kJ/kg/K at 0C saturated liquid`ASHRAE`

: h = 0, s = 0 @ -40C saturated liquid`NBP`

: h=0, s=0 for saturated liquid at 1 atmosphere`DEF`

: Go back to the default reference state for the fluid

which can be used like

```
In [28]: import CoolProp.CoolProp as CP
In [29]: CP.set_reference_state('n-Propane','ASHRAE')
# Should be zero (or very close to it)
In [30]: CP.PropsSI('H', 'T', 233.15, 'Q', 0, 'n-Propane')
Out[30]: 2.928438593838672e-11
# Back to the original value
In [31]: CP.set_reference_state('n-Propane','DEF')
# Should not be zero
In [32]: CP.PropsSI('H', 'T', 233.15, 'Q', 0, 'n-Propane')
Out[32]: 105123.27213761522
```

## Calling REFPROP¶

If you have the REFPROP library installed, you can call REFPROP in the same way that you call CoolProp, but with `REFPROP::`

preceding the fluid name. For instance, as in python:

```
In [33]: import CoolProp.CoolProp as CP
# Using properties from CoolProp to get R410A density
In [34]: CP.PropsSI('D','T',300,'P',101325,'HEOS::R32[0.697615]&R125[0.302385]')
Out[34]: 2.986886779635724
# Using properties from REFPROP to get R410A density
In [35]: CP.PropsSI('D','T',300,'P',101325,'REFPROP::R32[0.697615]&R125[0.302385]')
Out[35]: 2.9868825938765213
```

## C++ Sample Code¶

```
#include "CoolProp.h"
#include <iostream>
using namespace CoolProp;
int main()
{
// First type (slowest, due to most string processing, exposed in DLL)
std::cout << PropsSI("Dmolar","T",298,"P",1e5,"Propane[0.5]&Ethane[0.5]") << std::endl; // Default backend is HEOS
std::cout << PropsSI("Dmolar","T",298,"P",1e5,"HEOS::Propane[0.5]&Ethane[0.5]") << std::endl;
std::cout << PropsSI("Dmolar","T",298,"P",1e5,"REFPROP::Propane[0.5]&Ethane[0.5]") << std::endl;
std::vector<double> z(2,0.5);
// Second type (C++ only, a bit faster, allows for vector inputs and outputs)
std::vector<std::string> fluids; fluids.push_back("Propane"); fluids.push_back("Ethane");
std::vector<std::string> outputs; outputs.push_back("Dmolar");
std::vector<double> T(1,298), p(1,1e5);
std::cout << PropsSImulti(outputs,"T", T, "P", p, "", fluids, z)[0][0] << std::endl; // Default backend is HEOS
std::cout << PropsSImulti(outputs,"T", T, "P", p, "HEOS", fluids, z)[0][0] << std::endl;
// Comment me out if REFPROP is not installed
std::cout << PropsSImulti(outputs,"T", T, "P", p, "REFPROP", fluids, z)[0][0] << std::endl;
return EXIT_SUCCESS;
}
```

## C++ Sample Code Output¶

```
40.8269
40.8269
40.8269
40.8269
40.8269
40.8269
```

## Sample Code¶

```
In [36]: import CoolProp as CP
In [37]: print CP.__version__
6.1.0
In [38]: print CP.__gitrevision__
7864c2614ce5a0ef972386ee7f39859f0d3f8038
#Import the things you need
In [39]: from CoolProp.CoolProp import PropsSI
# Specific heat (J/kg/K) of 20% ethylene glycol as a function of T
In [40]: PropsSI('C','T',298.15,'P',101325,'INCOMP::MEG-20%')
Out[40]: 3905.2706242925874
# Density of Air at standard atmosphere in kg/m^3
In [41]: PropsSI('D','T',298.15,'P',101325,'Air')
Out[41]: 1.1843184839089664
# Saturation temperature of Water at 1 atm
In [42]: PropsSI('T','P',101325,'Q',0,'Water')
Out[42]: 373.1242958476844
# Saturated vapor density of R134a at 0C
In [43]: PropsSI('H','T',273.15,'Q',1,'R134a')
Out[43]: 398603.45362765493
# Using properties from CoolProp to get R410A density
In [44]: PropsSI('D','T',300,'P',101325,'HEOS::R32[0.697615]&R125[0.302385]')
Out[44]: 2.986886779635724
# Using properties from REFPROP to get R410A density
In [45]: PropsSI('D','T',300,'P',101325,'REFPROP::R32[0.697615]&R125[0.302385]')
Out[45]: 2.9868825938765213
# Check that the same as using pseudo-pure
In [46]: PropsSI('D','T',300,'P',101325,'R410A')
Out[46]: 2.986868076922677
```

## Table of string inputs to PropsSI function¶

Note

Please note that any parameter that is indicated as a trivial parameter can be obtained from the `Props1SI`

function as shown above in Trivial inputs

Parameter | Units | Input/Output | Trivial | Description |
---|---|---|---|---|

`DELTA` , `Delta` |
IO | False | Reduced density (rho/rhoc) | |

`DMOLAR` , `Dmolar` |
mol/m^3 | IO | False | Molar density |

`D` , `DMASS` , `Dmass` |
kg/m^3 | IO | False | Mass density |

`HMOLAR` , `Hmolar` |
J/mol | IO | False | Molar specific enthalpy |

`H` , `HMASS` , `Hmass` |
J/kg | IO | False | Mass specific enthalpy |

`P` |
Pa | IO | False | Pressure |

`Q` |
mol/mol | IO | False | Mass vapor quality |

`SMOLAR` , `Smolar` |
J/mol/K | IO | False | Molar specific entropy |

`S` , `SMASS` , `Smass` |
J/kg/K | IO | False | Mass specific entropy |

`TAU` , `Tau` |
IO | False | Reciprocal reduced temperature (Tc/T) | |

`T` |
K | IO | False | Temperature |

`UMOLAR` , `Umolar` |
J/mol | IO | False | Molar specific internal energy |

`U` , `UMASS` , `Umass` |
J/kg | IO | False | Mass specific internal energy |

`ACENTRIC` , `acentric` |
O | True | Acentric factor | |

`ALPHA0` , `alpha0` |
O | False | Ideal Helmholtz energy | |

`ALPHAR` , `alphar` |
O | False | Residual Helmholtz energy | |

`A` , `SPEED_OF_SOUND` , `speed_of_sound` |
m/s | O | False | Speed of sound |

`BVIRIAL` , `Bvirial` |
O | False | Second virial coefficient | |

`CONDUCTIVITY` , `L` , `conductivity` |
W/m/K | O | False | Thermal conductivity |

`CP0MASS` , `Cp0mass` |
J/kg/K | O | False | Ideal gas mass specific constant pressure specific heat |

`CP0MOLAR` , `Cp0molar` |
J/mol/K | O | False | Ideal gas molar specific constant pressure specific heat |

`CPMOLAR` , `Cpmolar` |
J/mol/K | O | False | Molar specific constant pressure specific heat |

`CVIRIAL` , `Cvirial` |
O | False | Third virial coefficient | |

`CVMASS` , `Cvmass` , `O` |
J/kg/K | O | False | Mass specific constant volume specific heat |

`CVMOLAR` , `Cvmolar` |
J/mol/K | O | False | Molar specific constant volume specific heat |

`C` , `CPMASS` , `Cpmass` |
J/kg/K | O | False | Mass specific constant pressure specific heat |

`DALPHA0_DDELTA_CONSTTAU` , `dalpha0_ddelta_consttau` |
O | False | Derivative of ideal Helmholtz energy with delta | |

`DALPHA0_DTAU_CONSTDELTA` , `dalpha0_dtau_constdelta` |
O | False | Derivative of ideal Helmholtz energy with tau | |

`DALPHAR_DDELTA_CONSTTAU` , `dalphar_ddelta_consttau` |
O | False | Derivative of residual Helmholtz energy with delta | |

`DALPHAR_DTAU_CONSTDELTA` , `dalphar_dtau_constdelta` |
O | False | Derivative of residual Helmholtz energy with tau | |

`DBVIRIAL_DT` , `dBvirial_dT` |
O | False | Derivative of second virial coefficient with respect to T | |

`DCVIRIAL_DT` , `dCvirial_dT` |
O | False | Derivative of third virial coefficient with respect to T | |

`DIPOLE_MOMENT` , `dipole_moment` |
C m | O | True | Dipole moment |

`FH` |
O | True | Flammability hazard | |

`FRACTION_MAX` , `fraction_max` |
O | True | Fraction (mole, mass, volume) maximum value for incompressible solutions | |

`FRACTION_MIN` , `fraction_min` |
O | True | Fraction (mole, mass, volume) minimum value for incompressible solutions | |

`FUNDAMENTAL_DERIVATIVE_OF_GAS_DYNAMICS` , `fundamental_derivative_of_gas_dynamics` |
O | False | Fundamental derivative of gas dynamics | |

`GAS_CONSTANT` , `gas_constant` |
J/mol/K | O | True | Molar gas constant |

`GMOLAR` , `Gmolar` |
J/mol | O | False | Molar specific Gibbs energy |

`GWP100` |
O | True | 100-year global warming potential | |

`GWP20` |
O | True | 20-year global warming potential | |

`GWP500` |
O | True | 500-year global warming potential | |

`G` , `GMASS` , `Gmass` |
J/kg | O | False | Mass specific Gibbs energy |

`HELMHOLTZMASS` , `Helmholtzmass` |
J/kg | O | False | Mass specific Helmholtz energy |

`HELMHOLTZMOLAR` , `Helmholtzmolar` |
J/mol | O | False | Molar specific Helmholtz energy |

`HH` |
O | True | Health hazard | |

`ISOBARIC_EXPANSION_COEFFICIENT` , `isobaric_expansion_coefficient` |
1/K | O | False | Isobaric expansion coefficient |

`ISOTHERMAL_COMPRESSIBILITY` , `isothermal_compressibility` |
1/Pa | O | False | Isothermal compressibility |

`I` , `SURFACE_TENSION` , `surface_tension` |
N/m | O | False | Surface tension |

`M` , `MOLARMASS` , `MOLAR_MASS` , `MOLEMASS` , `molar_mass` , `molarmass` , `molemass` |
kg/mol | O | True | Molar mass |

`ODP` |
O | True | Ozone depletion potential | |

`PCRIT` , `P_CRITICAL` , `Pcrit` , `p_critical` , `pcrit` |
Pa | O | True | Pressure at the critical point |

`PHASE` , `Phase` |
O | False | Phase index as a float | |

`PH` |
O | True | Physical hazard | |

`PIP` |
O | False | Phase identification parameter | |

`PMAX` , `P_MAX` , `P_max` , `pmax` |
Pa | O | True | Maximum pressure limit |

`PMIN` , `P_MIN` , `P_min` , `pmin` |
Pa | O | True | Minimum pressure limit |

`PRANDTL` , `Prandtl` |
O | False | Prandtl number | |

`PTRIPLE` , `P_TRIPLE` , `p_triple` , `ptriple` |
Pa | O | True | Pressure at the triple point (pure only) |

`P_REDUCING` , `p_reducing` |
Pa | O | True | Pressure at the reducing point |

`RHOCRIT` , `RHOMASS_CRITICAL` , `rhocrit` , `rhomass_critical` |
kg/m^3 | O | True | Mass density at critical point |

`RHOMASS_REDUCING` , `rhomass_reducing` |
kg/m^3 | O | True | Mass density at reducing point |

`RHOMOLAR_CRITICAL` , `rhomolar_critical` |
mol/m^3 | O | True | Molar density at critical point |

`RHOMOLAR_REDUCING` , `rhomolar_reducing` |
mol/m^3 | O | True | Molar density at reducing point |

`SMOLAR_RESIDUAL` , `Smolar_residual` |
J/mol/K | O | False | Residual molar entropy (sr/R = tau*dar_dtau-ar) |

`TCRIT` , `T_CRITICAL` , `T_critical` , `Tcrit` |
K | O | True | Temperature at the critical point |

`TMAX` , `T_MAX` , `T_max` , `Tmax` |
K | O | True | Maximum temperature limit |

`TMIN` , `T_MIN` , `T_min` , `Tmin` |
K | O | True | Minimum temperature limit |

`TTRIPLE` , `T_TRIPLE` , `T_triple` , `Ttriple` |
K | O | True | Temperature at the triple point |

`T_FREEZE` , `T_freeze` |
K | O | True | Freezing temperature for incompressible solutions |

`T_REDUCING` , `T_reducing` |
K | O | True | Temperature at the reducing point |

`V` , `VISCOSITY` , `viscosity` |
Pa s | O | False | Viscosity |

`Z` |
O | False | Compressibility factor |
