Mixtures¶
Theoretical description¶
The mixture modeling used in CoolProp is based on the work of Kunz et al. [153, 154] and Lemmon [4, 155, 156]
A mixture is composed of a number of components, and for each pair of components, it is necessary to have information for the excess Helmholtz energy term as well as the reducing function. See below for what binary pairs are included in CoolProp.

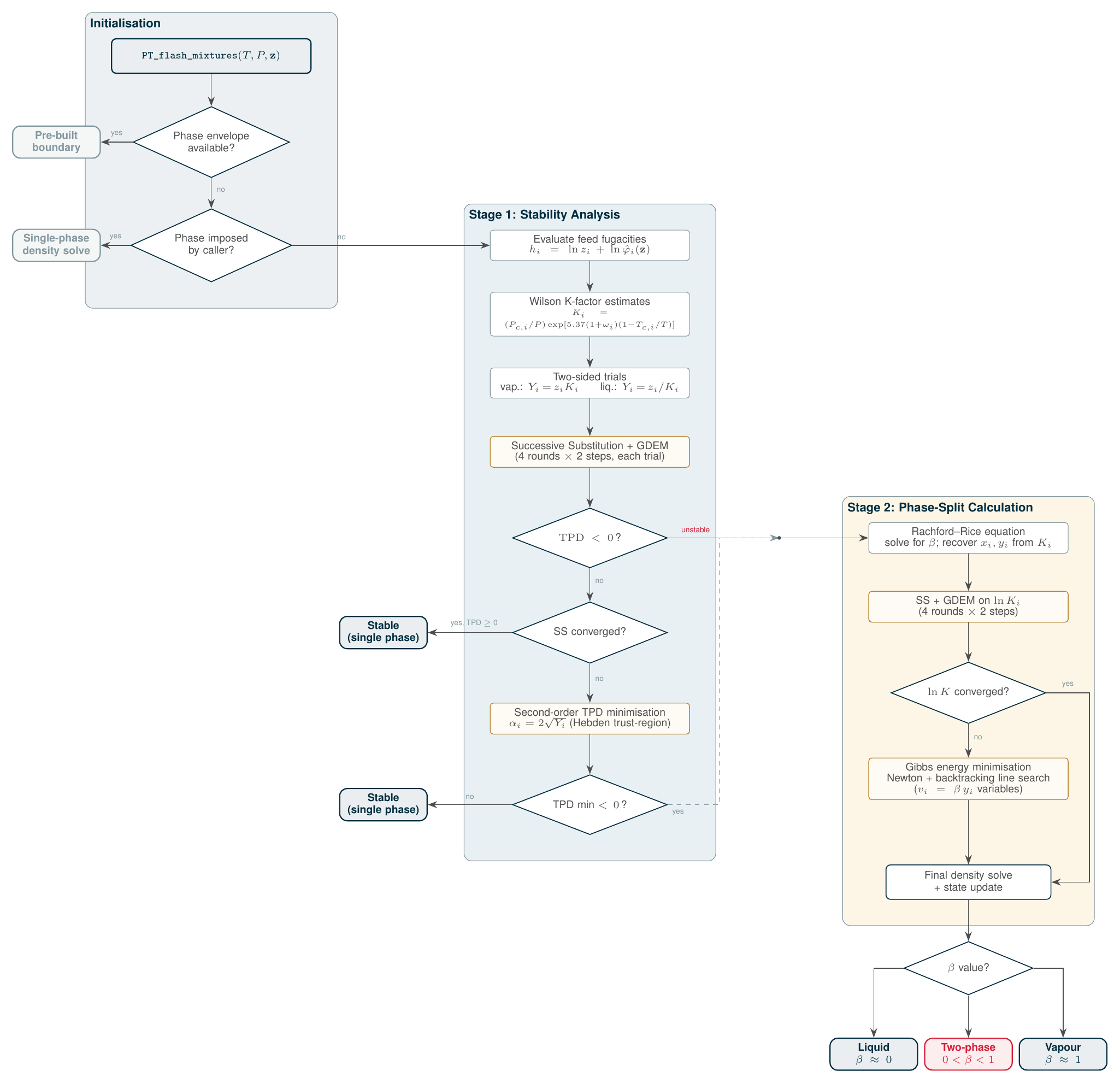

The numerical methods required for mixtures are far more complicated than those for pure fluids, so the number of flash routines that are currently available are relatively small compared to pure fluids.
The only types of inputs that are allowed for mixtures right now are
Pressure/quality
Temperature/quality
Temperature/pressure
Estimating binary interaction parameters¶
If you have a mixture that you would like to include in your analysis, but for which no interaction parameters are currently available, there are two estimation schemes available. These estimation schemes should be used with extreme caution. If you use these schemes, you should definitely check that you are getting reasonable output values. In general, these estimation schemes should be used for fluids with similar properties.
The two schemes available are
linear- \(T_r\) and \(v_r\) are a linear function of molar composition between the two pure fluid valuesLorentz-Berthelot- all interaction parameters are 1.0
Note that if apply_simple_mixing_rule is called first in a programme before any property calculation function, the interaction parameter library is initialized with just the binary mixture that was specified, and other binary mixtures will raise an error. To augment the built-in database, call a property calculation function before calling apply_simple_mixing_rule.
Here is a sample of using this in python:
In [1]: import CoolProp.CoolProp as CP
# Create a simple linear mixing rule for the Helium and Xenon pair
In [2]: CP.apply_simple_mixing_rule('Helium', 'Xenon', 'linear')
# Now evaluate the 50/50 mixture density at 300K and atmospheric pressure
In [3]: CP.PropsSI('Dmass','T',300,'P',101325,'Helium[0.5]&Xenon[0.5]')
Out[3]: 2.750733505001462
Warning
Use with caution!! For other mixtures this can give you entirely(!) wrong predictions
Using your own interaction parameters¶
If you have your own interaction parameters that you would like to use, you can set them using the set_mixture_binary_pair_data function. (You can also retrieve them using the get_mixture_binary_pair_data function). You must do this before you call any other functions that use them. Also, you must set the boolean configuration variable OVERWRITE_BINARY_INTERACTION to true. This variable is false by default and will dis-allow overwrites of parameters that already exist. Some sample code is below.
In [4]: import CoolProp.CoolProp as CP
In [5]: CAS_He = CP.get_fluid_param_string('Helium','CAS')
In [6]: CAS_Xe = CP.get_fluid_param_string('Xenon','CAS')
# This adds a dummy entry in the library of interaction parameters if the mixture is not already there
In [7]: CP.apply_simple_mixing_rule(CAS_He, CAS_Xe, 'linear')
# If the binary interaction pair is already there, set the configuration flag
# to allow binary interaction parameters to be over-written
In [8]: CP.set_config_bool(CP.OVERWRITE_BINARY_INTERACTION, True)
# This is before setting the binary interaction parameters
In [9]: CP.PropsSI('Dmass','T',300,'P',101325,'Helium[0.5]&Xenon[0.5]')
Out[9]: 2.750733505001462
In [10]: CP.set_mixture_binary_pair_data(CAS_He, CAS_Xe, 'betaT', 1.0)
In [11]: CP.set_mixture_binary_pair_data(CAS_He, CAS_Xe, 'gammaT', 1.5)
In [12]: CP.set_mixture_binary_pair_data(CAS_He, CAS_Xe, 'betaV', 1.0)
In [13]: CP.set_mixture_binary_pair_data(CAS_He, CAS_Xe, 'gammaV', 1.5)
# This is after setting the interaction parameters
In [14]: CP.PropsSI('Dmass','T',300,'P',101325,'Helium[0.5]&Xenon[0.5]')
Out[14]: 2.7487610022985494
Once you have constructed an instance of an AbstractState using the low-level interface, you can set the interaction parameters for only that instance by calling the set_binary_interaction_double and get_binary_interaction_double functions. This will have no effect on other instances, including the high-level calls, as shown below.
In [15]: import CoolProp.CoolProp as CP
# This adds a dummy entry in the library of interaction parameters if the mixture is not already there
In [16]: CP.apply_simple_mixing_rule(CAS_He, CAS_Xe, 'linear')
# First use the high-level call to PropsSI to get the mass density of a 50/50 mixture:
In [17]: CP.PropsSI('Dmass','T',300,'P',101325,'Helium[0.5]&Xenon[0.5]')
Out[17]: 2.750733505001462
# Now, use the low-level interface to modify the binary interaction parameters
In [18]: AS = CP.AbstractState("HEOS","Helium&Xenon")
In [19]: AS.set_binary_interaction_double(0, 1, 'betaT', 0.987)
In [20]: AS.get_binary_interaction_double(0, 1, 'betaT')
Out[20]: 0.987
In [21]: AS.set_binary_interaction_double(0, 1, 'gammaT', 1.5)
In [22]: AS.set_binary_interaction_double(0, 1, 'betaV', 1.0)
In [23]: AS.set_binary_interaction_double(0, 1, 'gammaV', 1.5)
In [24]: AS.set_mole_fractions([0.5,0.5])
In [25]: AS.update(CP.PT_INPUTS, 101325, 300)
In [26]: AS.rhomass()
Out[26]: 2.748760864304114
# Here you can see that this call to the high-level interface is untouched;
# giving the same ligh-level result from PropsSI() as above.
In [27]: CP.PropsSI('Dmass','T',300,'P',101325,'Helium[0.5]&Xenon[0.5]')
Out[27]: 2.750733505001462
And now, reset the OVERWRITE_BINARY_INTERACTION configuration variable to dis-allow overwrites.
In [28]: import CoolProp.CoolProp as CP
In [29]: CP.set_config_bool(CP.OVERWRITE_BINARY_INTERACTION, False)
Phase Envelope¶
You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.
Reducing Parameters¶
From Lemmon [4] for the properties of Dry Air, and also from Lemmon [155] for the properties of R404A, R410A, etc.
From the GERG 2008 formulation [154]
Excess Helmholtz Energy Terms¶
From Lemmon [155] for the properties of R404A, R410A, etc.
where the terms \(N_k,d_k,t_k,l_k\) correspond to the pair given by the indices \(i,j\)
From Lemmon [4] for the properties of Dry Air
From Kunz and Wagner [154] for GERG 2008 formulation
where
and is for the particular binary pair given by the indices \(i,j\). This term is similar in form to other Helmholtz energy terms for pure fluids though the derivatives are slightly special.
Appendix¶
To convert from the form from Lemmon for HFC and Air to that of GERG 2008, the following steps are required:
set \(\beta=1\), solve for \(\gamma\). Equate the terms
Move to LHS
Factor
Expand
Cancel factors of \(x_0(1-x_0)\)
Answer:
Same idea for the volume
Binary pairs¶
Note
Please hover the mouse pointer over the coefficients to get the full accuracy for the listed coefficients. You can also get more information on references that are not in bibliography.
Ref. |
Name1 |
Name2 |
function |
F |
xi |
betaT |
gammaT |
|---|---|---|---|---|---|---|---|
[155] |
R125 |
R143a |
GeneralizedHFC |
1.1697 |
5.5510e+00 |
||
[155] |
R125 |
R32 |
R32-R125 |
1 |
2.8950e+01 |
||
[155] |
R125 |
R134a |
GeneralizedHFC |
1 |
-4.3260e-01 |
||
[155] |
R143a |
R134a |
GeneralizedHFC |
0.5557 |
2.3240e+00 |
||
[155] |
R152a |
R134a |
GeneralizedHFC |
2 |
4.2020e+00 |
||
[155] |
R32 |
R134a |
R32-R134a |
1 |
7.9090e+00 |
||
[154] |
Argon |
Helium |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Argon |
IsoButane |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Argon |
HydrogenSulfide |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Argon |
Isopentane |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
CarbonDioxide |
Hydrogen |
0 |
9.4232e-01 |
1.7829e+00 |
||
[154] |
CarbonDioxide |
n-Heptane |
0 |
1.0118e+00 |
1.0462e+00 |
||
[154] |
CarbonDioxide |
Methane |
Methane-CarbonDioxide |
1 |
9.7788e-01 |
9.7567e-01 |
|
[154] |
CarbonDioxide |
Ethane |
0 |
1.0139e+00 |
9.0095e-01 |
||
[154] |
CarbonDioxide |
Propane |
0 |
1.0336e+00 |
9.0877e-01 |
||
[154] |
CarbonDioxide |
Helium |
0 |
7.6838e-01 |
3.2075e+00 |
||
[154] |
CarbonDioxide |
IsoButane |
0 |
1.0233e+00 |
9.2998e-01 |
||
[154] |
CarbonDioxide |
HydrogenSulfide |
0 |
1.0160e+00 |
9.2602e-01 |
||
[154] |
CarbonDioxide |
Isopentane |
0 |
1.0192e+00 |
9.6122e-01 |
||
[154] |
CarbonMonoxide |
Methane |
0 |
1.0127e+00 |
9.8747e-01 |
||
[154] |
CarbonMonoxide |
Ethane |
0 |
1.0000e+00 |
1.0692e+00 |
||
[154] |
CarbonMonoxide |
Propane |
0 |
1.0000e+00 |
1.1976e+00 |
||
[154] |
CarbonMonoxide |
Helium |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
CarbonMonoxide |
IsoButane |
0 |
1.0000e+00 |
1.1614e+00 |
||
[154] |
CarbonMonoxide |
HydrogenSulfide |
0 |
1.0255e+00 |
1.0227e+00 |
||
[154] |
CarbonMonoxide |
Isopentane |
0 |
1.0000e+00 |
1.1993e+00 |
||
[154] |
Ethane |
Propane |
GeneralizedAlkane |
0.13042476515 |
9.9620e-01 |
1.0147e+00 |
|
[154] |
Ethane |
Argon |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Ethane |
Helium |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Ethane |
IsoButane |
GeneralizedAlkane |
0.260632376098 |
1.0000e+00 |
1.0333e+00 |
|
[154] |
Ethane |
Nitrogen |
Nitrogen-Ethane |
1 |
9.9239e-01 |
1.0987e+00 |
|
[154] |
Ethane |
Water |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Ethane |
Oxygen |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Ethane |
HydrogenSulfide |
0 |
9.9020e-01 |
9.0274e-01 |
||
[154] |
Ethane |
Isopentane |
0 |
1.0000e+00 |
1.0212e+00 |
||
[154] |
Helium |
IsoButane |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Helium |
Nitrogen |
0 |
1.4433e+00 |
1.4718e+00 |
||
[154] |
Helium |
Water |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Helium |
Oxygen |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Helium |
HydrogenSulfide |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Helium |
Isopentane |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Hydrogen |
n-Heptane |
0 |
1.0000e+00 |
3.1691e+00 |
||
[154] |
Hydrogen |
CarbonMonoxide |
0 |
1.0000e+00 |
1.3775e+00 |
||
[154] |
Hydrogen |
Methane |
Methane-Hydrogen |
1 |
1.0000e+00 |
1.3526e+00 |
|
[154] |
Hydrogen |
Ethane |
0 |
1.0718e+00 |
1.9020e+00 |
||
[154] |
Hydrogen |
Propane |
0 |
1.0000e+00 |
2.3082e+00 |
||
[154] |
Hydrogen |
Argon |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Hydrogen |
Helium |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Hydrogen |
IsoButane |
0 |
1.0000e+00 |
1.8953e+00 |
||
[154] |
Hydrogen |
Nitrogen |
0 |
1.0569e+00 |
1.1757e+00 |
||
[154] |
Hydrogen |
Water |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Hydrogen |
Oxygen |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Hydrogen |
HydrogenSulfide |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Hydrogen |
Isopentane |
0 |
1.0000e+00 |
1.9964e+00 |
||
[154] |
HydrogenSulfide |
Isopentane |
0 |
1.0000e+00 |
9.8265e-01 |
||
[154] |
IsoButane |
Nitrogen |
0 |
1.0072e+00 |
1.2845e+00 |
||
[154] |
IsoButane |
Water |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
IsoButane |
Oxygen |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
IsoButane |
HydrogenSulfide |
0 |
9.7455e-01 |
9.3713e-01 |
||
[154] |
IsoButane |
Isopentane |
0 |
1.0000e+00 |
1.0018e+00 |
||
[154] |
Methane |
Ethane |
Methane-Ethane |
1 |
9.9634e-01 |
1.0497e+00 |
|
[154] |
Methane |
Propane |
Methane-Propane |
1 |
9.8968e-01 |
1.0987e+00 |
|
[154] |
Methane |
Argon |
0 |
9.9095e-01 |
9.8984e-01 |
||
[154] |
Methane |
Helium |
0 |
1.0000e+00 |
3.1598e+00 |
||
[154] |
Methane |
IsoButane |
GeneralizedAlkane |
0.771035405688 |
9.8032e-01 |
1.1611e+00 |
|
[154] |
Methane |
Nitrogen |
Methane-Nitrogen |
1 |
9.9810e-01 |
9.7927e-01 |
|
[154] |
Methane |
Water |
0 |
1.0633e+00 |
7.7581e-01 |
||
[154] |
Methane |
Oxygen |
0 |
1.0000e+00 |
9.5000e-01 |
||
[154] |
Methane |
HydrogenSulfide |
0 |
1.0111e+00 |
9.6116e-01 |
||
[154] |
Methane |
Isopentane |
0 |
1.0000e+00 |
1.1889e+00 |
||
[154] |
Nitrogen |
HydrogenSulfide |
0 |
1.0047e+00 |
9.6017e-01 |
||
[154] |
Nitrogen |
Isopentane |
0 |
1.0000e+00 |
1.3818e+00 |
||
[154] |
Oxygen |
HydrogenSulfide |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Oxygen |
Isopentane |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Propane |
Argon |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Propane |
Helium |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Propane |
IsoButane |
GeneralizedAlkane |
-0.0551609771024 |
9.9801e-01 |
1.0053e+00 |
|
[154] |
Propane |
Nitrogen |
0 |
9.9733e-01 |
1.2013e+00 |
||
[154] |
Propane |
Water |
0 |
1.0000e+00 |
6.0034e-01 |
||
[154] |
Propane |
Oxygen |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
Propane |
HydrogenSulfide |
0 |
9.9257e-01 |
9.0583e-01 |
||
[154] |
Propane |
Isopentane |
0 |
9.9436e-01 |
1.0033e+00 |
||
[154] |
Water |
HydrogenSulfide |
0 |
1.0000e+00 |
9.4059e-01 |
||
[154] |
Water |
Isopentane |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Butane |
n-Pentane |
0 |
1.0000e+00 |
1.0021e+00 |
||
[154] |
n-Butane |
n-Hexane |
0 |
1.0000e+00 |
1.0092e+00 |
||
[154] |
n-Butane |
n-Octane |
0 |
1.0000e+00 |
1.0332e+00 |
||
[154] |
n-Butane |
n-Nonane |
0 |
1.0000e+00 |
1.0141e+00 |
||
[154] |
n-Butane |
n-Decane |
0 |
9.9369e-01 |
1.0765e+00 |
||
[154] |
n-Butane |
CarbonDioxide |
0 |
9.8215e-01 |
9.1150e-01 |
||
[154] |
n-Butane |
Hydrogen |
0 |
1.0000e+00 |
2.5093e+00 |
||
[154] |
n-Butane |
n-Heptane |
0 |
1.0000e+00 |
1.0213e+00 |
||
[154] |
n-Butane |
CarbonMonoxide |
0 |
1.0000e+00 |
1.1739e+00 |
||
[154] |
n-Butane |
Methane |
GeneralizedAlkane |
1 |
1.0059e+00 |
1.1716e+00 |
|
[154] |
n-Butane |
Ethane |
GeneralizedAlkane |
0.281570073085 |
1.0009e+00 |
1.0348e+00 |
|
[154] |
n-Butane |
Propane |
GeneralizedAlkane |
0.0312572600489 |
9.9969e-01 |
1.0074e+00 |
|
[154] |
n-Butane |
Argon |
0 |
1.0000e+00 |
1.2450e+00 |
||
[154] |
n-Butane |
Helium |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Butane |
IsoButane |
GeneralizedAlkane |
-0.0551240293009 |
1.0001e+00 |
1.0014e+00 |
|
[154] |
n-Butane |
Nitrogen |
0 |
1.0055e+00 |
1.3049e+00 |
||
[154] |
n-Butane |
Water |
0 |
1.0000e+00 |
6.1551e-01 |
||
[154] |
n-Butane |
Oxygen |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Butane |
HydrogenSulfide |
0 |
9.8596e-01 |
9.2616e-01 |
||
[154] |
n-Butane |
Isopentane |
0 |
1.0000e+00 |
1.0008e+00 |
||
[154] |
n-Decane |
CarbonDioxide |
0 |
9.8036e-01 |
1.1455e+00 |
||
[154] |
n-Decane |
Hydrogen |
0 |
1.0648e+00 |
3.7860e+00 |
||
[154] |
n-Decane |
n-Heptane |
0 |
1.0000e+00 |
1.0022e+00 |
||
[154] |
n-Decane |
CarbonMonoxide |
0 |
1.0496e+00 |
1.8036e+00 |
||
[154] |
n-Decane |
Methane |
0 |
1.0664e+00 |
1.5682e+00 |
||
[154] |
n-Decane |
Ethane |
0 |
1.0300e+00 |
1.2372e+00 |
||
[154] |
n-Decane |
Propane |
0 |
1.0149e+00 |
1.1409e+00 |
||
[154] |
n-Decane |
Argon |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Decane |
Helium |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Decane |
IsoButane |
0 |
1.0000e+00 |
1.0216e+00 |
||
[154] |
n-Decane |
Nitrogen |
0 |
1.0439e+00 |
1.8222e+00 |
||
[154] |
n-Decane |
Water |
0 |
8.9716e-01 |
7.4042e-01 |
||
[154] |
n-Decane |
Oxygen |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Decane |
HydrogenSulfide |
0 |
9.7309e-01 |
1.1037e+00 |
||
[154] |
n-Decane |
Isopentane |
0 |
1.0000e+00 |
1.0108e+00 |
||
[154] |
n-Heptane |
CarbonMonoxide |
0 |
1.0000e+00 |
1.2561e+00 |
||
[154] |
n-Heptane |
Methane |
0 |
1.0231e+00 |
1.3799e+00 |
||
[154] |
n-Heptane |
Ethane |
0 |
1.0000e+00 |
1.1345e+00 |
||
[154] |
n-Heptane |
Propane |
0 |
1.0000e+00 |
1.0500e+00 |
||
[154] |
n-Heptane |
Argon |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Heptane |
Helium |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Heptane |
IsoButane |
0 |
1.0000e+00 |
1.0099e+00 |
||
[154] |
n-Heptane |
Nitrogen |
0 |
1.0000e+00 |
1.5210e+00 |
||
[154] |
n-Heptane |
Water |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Heptane |
Oxygen |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Heptane |
HydrogenSulfide |
0 |
9.8894e-01 |
1.0135e+00 |
||
[154] |
n-Heptane |
Isopentane |
0 |
1.0000e+00 |
1.0032e+00 |
||
[154] |
n-Hexane |
n-Octane |
0 |
1.0000e+00 |
1.0016e+00 |
||
[154] |
n-Hexane |
n-Nonane |
0 |
1.0000e+00 |
1.0554e+00 |
||
[154] |
n-Hexane |
n-Decane |
0 |
9.9764e-01 |
1.0289e+00 |
||
[154] |
n-Hexane |
CarbonDioxide |
0 |
1.0000e+00 |
1.0387e+00 |
||
[154] |
n-Hexane |
Hydrogen |
0 |
1.0000e+00 |
3.0212e+00 |
||
[154] |
n-Hexane |
n-Heptane |
0 |
1.0000e+00 |
9.9976e-01 |
||
[154] |
n-Hexane |
CarbonMonoxide |
0 |
1.0000e+00 |
1.2333e+00 |
||
[154] |
n-Hexane |
Methane |
0 |
1.0185e+00 |
1.3306e+00 |
||
[154] |
n-Hexane |
Ethane |
0 |
1.0000e+00 |
1.0922e+00 |
||
[154] |
n-Hexane |
Propane |
0 |
1.0000e+00 |
1.0257e+00 |
||
[154] |
n-Hexane |
Argon |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Hexane |
Helium |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Hexane |
IsoButane |
0 |
1.0000e+00 |
1.0060e+00 |
||
[154] |
n-Hexane |
Nitrogen |
0 |
1.0000e+00 |
1.4726e+00 |
||
[154] |
n-Hexane |
Water |
0 |
1.0000e+00 |
5.6968e-01 |
||
[154] |
n-Hexane |
Oxygen |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Hexane |
HydrogenSulfide |
0 |
9.8589e-01 |
9.5608e-01 |
||
[154] |
n-Hexane |
Isopentane |
0 |
1.0000e+00 |
1.0012e+00 |
||
[154] |
n-Nonane |
n-Decane |
0 |
1.0000e+00 |
1.0002e+00 |
||
[154] |
n-Nonane |
CarbonDioxide |
0 |
9.9237e-01 |
1.1407e+00 |
||
[154] |
n-Nonane |
Hydrogen |
0 |
1.0000e+00 |
2.2344e+00 |
||
[154] |
n-Nonane |
n-Heptane |
0 |
1.0000e+00 |
1.0012e+00 |
||
[154] |
n-Nonane |
CarbonMonoxide |
0 |
1.0000e+00 |
1.2941e+00 |
||
[154] |
n-Nonane |
Methane |
0 |
1.0552e+00 |
1.5285e+00 |
||
[154] |
n-Nonane |
Ethane |
0 |
1.0000e+00 |
1.0560e+00 |
||
[154] |
n-Nonane |
Propane |
0 |
1.0000e+00 |
1.1100e+00 |
||
[154] |
n-Nonane |
Argon |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Nonane |
Helium |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Nonane |
IsoButane |
0 |
1.0000e+00 |
1.0178e+00 |
||
[154] |
n-Nonane |
Nitrogen |
0 |
1.0456e+00 |
1.7491e+00 |
||
[154] |
n-Nonane |
Water |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Nonane |
Oxygen |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Nonane |
HydrogenSulfide |
0 |
1.0000e+00 |
1.0866e+00 |
||
[154] |
n-Nonane |
Isopentane |
0 |
1.0000e+00 |
1.0082e+00 |
||
[154] |
n-Octane |
n-Nonane |
0 |
1.0000e+00 |
1.0002e+00 |
||
[154] |
n-Octane |
n-Decane |
0 |
1.0000e+00 |
1.0072e+00 |
||
[154] |
n-Octane |
CarbonDioxide |
0 |
9.7117e-01 |
1.0745e+00 |
||
[154] |
n-Octane |
Hydrogen |
0 |
1.0000e+00 |
2.1916e+00 |
||
[154] |
n-Octane |
n-Heptane |
0 |
1.0000e+00 |
9.9879e-01 |
||
[154] |
n-Octane |
CarbonMonoxide |
0 |
1.0000e+00 |
1.2766e+00 |
||
[154] |
n-Octane |
Methane |
0 |
1.0444e+00 |
1.4492e+00 |
||
[154] |
n-Octane |
Ethane |
0 |
1.0162e+00 |
1.1686e+00 |
||
[154] |
n-Octane |
Propane |
0 |
1.0000e+00 |
1.0637e+00 |
||
[154] |
n-Octane |
Argon |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Octane |
Helium |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Octane |
IsoButane |
0 |
1.0000e+00 |
1.0139e+00 |
||
[154] |
n-Octane |
Nitrogen |
0 |
1.0000e+00 |
1.7333e+00 |
||
[154] |
n-Octane |
Water |
0 |
1.0000e+00 |
6.6207e-01 |
||
[154] |
n-Octane |
Oxygen |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Octane |
HydrogenSulfide |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Octane |
Isopentane |
0 |
1.0000e+00 |
1.0056e+00 |
||
[154] |
n-Pentane |
n-Hexane |
0 |
1.0000e+00 |
1.0008e+00 |
||
[154] |
n-Pentane |
n-Octane |
0 |
1.0000e+00 |
1.0164e+00 |
||
[154] |
n-Pentane |
n-Nonane |
0 |
1.0000e+00 |
1.1034e+00 |
||
[154] |
n-Pentane |
n-Decane |
0 |
1.0000e+00 |
1.0490e+00 |
||
[154] |
n-Pentane |
CarbonDioxide |
0 |
9.7371e-01 |
9.7922e-01 |
||
[154] |
n-Pentane |
Hydrogen |
0 |
1.0000e+00 |
2.0139e+00 |
||
[154] |
n-Pentane |
n-Heptane |
0 |
1.0000e+00 |
1.0024e+00 |
||
[154] |
n-Pentane |
CarbonMonoxide |
0 |
1.0000e+00 |
1.2060e+00 |
||
[154] |
n-Pentane |
Methane |
0 |
1.0079e+00 |
1.2492e+00 |
||
[154] |
n-Pentane |
Ethane |
0 |
1.0013e+00 |
1.0667e+00 |
||
[154] |
n-Pentane |
Propane |
0 |
1.0035e+00 |
1.0083e+00 |
||
[154] |
n-Pentane |
Argon |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Pentane |
Helium |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Pentane |
IsoButane |
0 |
1.0000e+00 |
1.0025e+00 |
||
[154] |
n-Pentane |
Nitrogen |
0 |
1.0000e+00 |
1.4190e+00 |
||
[154] |
n-Pentane |
Water |
0 |
1.0000e+00 |
4.4767e-01 |
||
[154] |
n-Pentane |
Oxygen |
0 |
1.0000e+00 |
1.0000e+00 |
||
[154] |
n-Pentane |
HydrogenSulfide |
0 |
9.6201e-01 |
9.5907e-01 |
||
[154] |
n-Pentane |
Isopentane |
0 |
1.0000e+00 |
1.0001e+00 |
||
[157] |
Argon |
Nitrogen |
0 |
1.0006e+00 |
9.8931e-01 |
||
[157] |
Argon |
Water |
0 |
1.4725e+00 |
9.2100e-01 |
||
[157] |
Argon |
Oxygen |
0 |
1.0010e+00 |
9.8882e-01 |
||
[157] |
CarbonDioxide |
CarbonMonoxide |
0 |
9.9325e-01 |
1.0684e+00 |
||
[157] |
CarbonDioxide |
Argon |
Argon-CarbonDioxide |
1 |
1.0271e+00 |
9.6878e-01 |
|
[157] |
CarbonDioxide |
Nitrogen |
Nitrogen-CarbonDioxide |
1 |
9.9414e-01 |
1.1077e+00 |
|
[157] |
CarbonDioxide |
Water |
CarbonDioxide-Water |
1 |
1.0305e+00 |
8.2847e-01 |
|
[157] |
CarbonDioxide |
Oxygen |
0 |
1.0000e+00 |
1.0320e+00 |
||
[157] |
CarbonMonoxide |
Argon |
0 |
1.0000e+00 |
9.5422e-01 |
||
[157] |
CarbonMonoxide |
Nitrogen |
0 |
9.9760e-01 |
9.9410e-01 |
||
[157] |
CarbonMonoxide |
Water |
GeneralizedAirWater |
0.9897 |
9.5609e-01 |
8.2398e-01 |
|
[157] |
CarbonMonoxide |
Oxygen |
0 |
1.0000e+00 |
1.0000e+00 |
||
[157] |
Nitrogen |
Water |
GeneralizedAirWater |
1 |
1.0481e+00 |
8.0515e-01 |
|
[157] |
Nitrogen |
Oxygen |
0 |
9.9719e-01 |
9.9516e-01 |
||
[157] |
Water |
Oxygen |
GeneralizedAirWater |
0.6017 |
7.9805e-01 |
8.0784e-01 |
|
Source |
Ethanol |
Water |
Ethanol-Water |
0.3285109 |
9.7176e-01 |
9.3997e-01 |
|
[158] |
1BUTENE |
PROPYLEN |
0 |
1.0002e+00 |
1.0072e+00 |
||
[158] |
1BUTENE |
DME |
0 |
9.9767e-01 |
9.8081e-01 |
||
[158] |
1BUTENE |
R1216 |
0 |
1.0173e+00 |
9.2312e-01 |
||
[158] |
1BUTENE |
CO2 |
0 |
9.8059e-01 |
9.6751e-01 |
||
[158] |
1BUTENE |
C4F10 |
0 |
1.0635e+00 |
8.6402e-01 |
||
[158] |
1BUTENE |
ACETONE |
0 |
1.0148e+00 |
9.5623e-01 |
||
[158] |
1BUTENE |
ETHYLENE |
0 |
1.0033e+00 |
1.0557e+00 |
||
[158] |
1BUTENE |
R32 |
0 |
9.8014e-01 |
8.5398e-01 |
||
[158] |
ACETONE |
BENZENE |
0 |
9.9820e-01 |
9.8198e-01 |
||
[158] |
ACETONE |
ETHANE |
0 |
9.6779e-01 |
1.0142e+00 |
||
[158] |
ACETONE |
ETHYLENE |
0 |
9.9223e-01 |
1.1008e+00 |
||
[158] |
ACETONE |
SO2 |
0 |
1.0107e+00 |
1.1045e+00 |
||
[158] |
ACETONE |
ISOBUTAN |
0 |
9.8302e-01 |
9.3551e-01 |
||
[158] |
ACETONE |
R22 |
0 |
1.0466e+00 |
1.0798e+00 |
||
[158] |
ACETONE |
R113 |
0 |
9.9630e-01 |
9.5086e-01 |
||
[158] |
ACETONE |
WATER |
0 |
9.8238e-01 |
9.1970e-01 |
||
[158] |
ACETONE |
H2S |
0 |
9.5958e-01 |
1.0487e+00 |
||
[158] |
ARGON |
R22 |
0 |
9.8668e-01 |
1.2053e+00 |
||
[158] |
ARGON |
AMMONIA |
0 |
9.6620e-01 |
1.0650e+00 |
||
[158] |
BENZENE |
METHANE |
0 |
1.0018e+00 |
1.2931e+00 |
||
[158] |
BENZENE |
ETHANE |
0 |
9.9662e-01 |
1.0816e+00 |
||
[158] |
BENZENE |
PROPANE |
0 |
1.0017e+00 |
1.0194e+00 |
||
[158] |
BENZENE |
ARGON |
0 |
9.9710e-01 |
1.4046e+00 |
||
[158] |
BENZENE |
R22 |
0 |
1.0106e+00 |
1.0350e+00 |
||
[158] |
BENZENE |
R113 |
0 |
1.0037e+00 |
9.7215e-01 |
||
[158] |
BENZENE |
R114 |
0 |
1.0012e+00 |
9.5788e-01 |
||
[158] |
BENZENE |
AMMONIA |
0 |
9.7026e-01 |
9.2822e-01 |
||
[158] |
BENZENE |
H2S |
0 |
1.0056e+00 |
1.0601e+00 |
||
[158] |
BENZENE |
OXYLENE |
0 |
1.0141e+00 |
1.0033e+00 |
||
[158] |
BUTANE |
1BUTENE |
0 |
9.9846e-01 |
9.9777e-01 |
||
[158] |
BUTANE |
CYCLOHEX |
0 |
1.0072e+00 |
1.0283e+00 |
||
[158] |
BUTANE |
MPALMITA |
0 |
9.3827e-01 |
1.2115e+00 |
||
[158] |
BUTANE |
DME |
0 |
9.9621e-01 |
9.6541e-01 |
||
[158] |
BUTANE |
IBUTENE |
0 |
1.0006e+00 |
9.9703e-01 |
||
[158] |
BUTANE |
R125 |
0 |
9.9482e-01 |
9.0412e-01 |
||
[158] |
BUTANE |
R143A |
0 |
1.0009e+00 |
9.1912e-01 |
||
[158] |
BUTANE |
R227EA |
0 |
1.0144e+00 |
9.0171e-01 |
||
[158] |
BUTANE |
R245FA |
0 |
1.0163e+00 |
9.0319e-01 |
||
[158] |
BUTANE |
C2BUTENE |
0 |
9.9880e-01 |
9.9538e-01 |
||
[158] |
BUTANE |
T2BUTENE |
0 |
9.9911e-01 |
9.9609e-01 |
||
[158] |
BUTANE |
C14 |
0 |
9.7985e-01 |
1.1598e+00 |
||
[158] |
BUTANE |
ACETONE |
0 |
1.0166e+00 |
9.3303e-01 |
||
[158] |
BUTANE |
BENZENE |
0 |
1.0099e+00 |
9.9834e-01 |
||
[158] |
BUTANE |
ETHYLENE |
0 |
1.0226e+00 |
1.0589e+00 |
||
[158] |
BUTANE |
R32 |
0 |
9.8166e-01 |
8.6990e-01 |
||
[158] |
BUTANE |
R152A |
0 |
1.0024e+00 |
9.1179e-01 |
||
[158] |
BUTANE |
R23 |
0 |
9.7624e-01 |
8.9836e-01 |
||
[158] |
BUTANE |
R13 |
0 |
9.9730e-01 |
9.8279e-01 |
||
[158] |
BUTANE |
R113 |
0 |
1.0029e+00 |
9.9168e-01 |
||
[158] |
BUTANE |
HCL |
0 |
9.7018e-01 |
9.4381e-01 |
||
[158] |
BUTANE |
AMMONIA |
0 |
9.4455e-01 |
8.0552e-01 |
||
[158] |
BUTANE |
R134A |
0 |
1.0041e+00 |
8.9057e-01 |
||
[158] |
C11 |
CO2 |
0 |
9.9389e-01 |
1.1912e+00 |
||
[158] |
C11 |
METHANOL |
0 |
9.0438e-01 |
9.5529e-01 |
||
[158] |
C11 |
ETHANE |
0 |
1.0603e+00 |
1.2794e+00 |
||
[158] |
C11 |
OXYLENE |
0 |
9.9810e-01 |
9.9825e-01 |
||
[158] |
C12 |
DECANE |
0 |
9.9870e-01 |
1.0038e+00 |
||
[158] |
C12 |
HEPTANE |
0 |
9.9911e-01 |
1.0301e+00 |
||
[158] |
C12 |
CO |
0 |
1.0688e+00 |
1.9273e+00 |
||
[158] |
C12 |
METHANOL |
0 |
9.0111e-01 |
7.9118e-01 |
||
[158] |
C12 |
ACETONE |
0 |
9.6880e-01 |
9.9897e-01 |
||
[158] |
C12 |
BENZENE |
0 |
9.9288e-01 |
1.0255e+00 |
||
[158] |
C12 |
ETHANE |
0 |
1.0504e+00 |
1.3251e+00 |
||
[158] |
C12 |
H2S |
0 |
1.0173e+00 |
1.1781e+00 |
||
[158] |
C14 |
METHANOL |
0 |
9.0474e-01 |
1.8208e+00 |
||
[158] |
C14 |
ACETONE |
0 |
9.7273e-01 |
1.0237e+00 |
||
[158] |
C14 |
BENZENE |
0 |
1.0013e+00 |
1.0497e+00 |
||
[158] |
C14 |
PROPANE |
0 |
1.0668e+00 |
1.1558e+00 |
||
[158] |
C1CC6 |
TOLUENE |
0 |
9.9987e-01 |
9.8708e-01 |
||
[158] |
C1CC6 |
PENTANE |
0 |
1.0025e+00 |
1.0031e+00 |
||
[158] |
C1CC6 |
HEXANE |
0 |
1.0001e+00 |
9.9759e-01 |
||
[158] |
C1CC6 |
CYCLOHEX |
0 |
9.9923e-01 |
9.9987e-01 |
||
[158] |
C1CC6 |
HEPTANE |
0 |
9.9972e-01 |
9.9780e-01 |
||
[158] |
C1CC6 |
ETHANOL |
0 |
1.0257e+00 |
9.0130e-01 |
||
[158] |
C1CC6 |
BENZENE |
0 |
9.9550e-01 |
9.8159e-01 |
||
[158] |
C1CC6 |
ETHANE |
0 |
1.0097e+00 |
1.1277e+00 |
||
[158] |
C1CC6 |
PROPANE |
0 |
9.9917e-01 |
1.0540e+00 |
||
[158] |
C1CC6 |
OXYLENE |
0 |
1.0013e+00 |
9.9508e-01 |
||
[158] |
C2BUTENE |
ETHANOL |
0 |
1.0259e+00 |
9.4964e-01 |
||
[158] |
C2BUTENE |
METHANOL |
0 |
1.0266e+00 |
9.0617e-01 |
||
[158] |
C2BUTENE |
ACETONE |
0 |
1.0144e+00 |
9.5209e-01 |
||
[158] |
C3CC6 |
ETHANE |
0 |
1.0191e+00 |
1.1950e+00 |
||
[158] |
C3CC6 |
PROPANE |
0 |
1.0052e+00 |
1.1094e+00 |
||
[158] |
C3CC6 |
NITROGEN |
0 |
1.0121e+00 |
1.6933e+00 |
||
[158] |
C3CC6 |
H2S |
0 |
1.0043e+00 |
1.1011e+00 |
||
[158] |
C4F10 |
R365MFC |
0 |
9.9786e-01 |
9.3067e-01 |
||
[158] |
C4F10 |
METHANE |
0 |
9.8649e-01 |
1.1237e+00 |
||
[158] |
C4F10 |
ETHANE |
0 |
9.7199e-01 |
9.7003e-01 |
||
[158] |
C4F10 |
ETHYLENE |
0 |
9.6014e-01 |
9.7341e-01 |
||
[158] |
C4F10 |
PROPANE |
0 |
9.7499e-01 |
9.0987e-01 |
||
[158] |
CF3I |
R1234ZE |
0 |
1.0035e+00 |
9.6604e-01 |
||
[158] |
CF3I |
PROPANE |
0 |
9.9452e-01 |
9.8807e-01 |
||
[158] |
CF3I |
ISOBUTAN |
0 |
1.0020e+00 |
9.8459e-01 |
||
[158] |
CF3I |
R152A |
0 |
9.9875e-01 |
9.6404e-01 |
||
[158] |
CF3I |
NITROGEN |
0 |
1.0012e+00 |
1.3023e+00 |
||
[158] |
CO |
ETHANOL |
0 |
9.1325e-01 |
1.6999e+00 |
||
[158] |
CO |
BENZENE |
0 |
9.7205e-01 |
1.4725e+00 |
||
[158] |
CO |
ETHYLENE |
0 |
9.6489e-01 |
1.0911e+00 |
||
[158] |
CO2 |
R124 |
0 |
9.9517e-01 |
1.0103e+00 |
||
[158] |
CO2 |
CYCLOPEN |
0 |
1.0159e+00 |
9.8308e-01 |
||
[158] |
CO2 |
R1234ZE |
0 |
1.0022e+00 |
1.0223e+00 |
||
[158] |
CO2 |
R123 |
0 |
9.8639e-01 |
1.0589e+00 |
||
[158] |
CO2 |
R125 |
0 |
1.0115e+00 |
9.6741e-01 |
||
[158] |
CO2 |
C4F10 |
0 |
1.0416e+00 |
9.5201e-01 |
||
[158] |
CO2 |
R143A |
0 |
1.0203e+00 |
9.8474e-01 |
||
[158] |
CO2 |
R227EA |
0 |
1.0061e+00 |
1.0024e+00 |
||
[158] |
CO2 |
COS |
0 |
1.0002e+00 |
9.4450e-01 |
||
[158] |
CO2 |
NEOPENTN |
0 |
1.0267e+00 |
9.5430e-01 |
||
[158] |
CO2 |
R41 |
0 |
9.9603e-01 |
1.0030e+00 |
||
[158] |
CO2 |
DEE |
0 |
1.0122e+00 |
1.0324e+00 |
||
[158] |
CO2 |
ACETONE |
0 |
9.8695e-01 |
1.0805e+00 |
||
[158] |
CO2 |
BENZENE |
0 |
1.0074e+00 |
1.0330e+00 |
||
[158] |
CO2 |
ETHYLENE |
0 |
1.0040e+00 |
9.5576e-01 |
||
[158] |
CO2 |
SO2 |
0 |
1.0051e+00 |
1.0107e+00 |
||
[158] |
CO2 |
R32 |
0 |
1.0031e+00 |
9.9971e-01 |
||
[158] |
CO2 |
R152A |
0 |
1.0022e+00 |
1.0065e+00 |
||
[158] |
CO2 |
R22 |
0 |
1.0039e+00 |
1.0125e+00 |
||
[158] |
CO2 |
R23 |
0 |
1.0040e+00 |
9.8470e-01 |
||
[158] |
CO2 |
R142B |
0 |
1.0120e+00 |
1.0078e+00 |
||
[158] |
CO2 |
R12 |
0 |
1.0181e+00 |
9.5760e-01 |
||
[158] |
CO2 |
R1234YF |
0 |
1.0113e+00 |
9.8477e-01 |
||
[158] |
CO2 |
NOVEC649 |
0 |
1.0436e+00 |
1.0351e+00 |
||
[158] |
CO2 |
R116 |
0 |
1.0381e+00 |
8.9857e-01 |
||
[158] |
CO2 |
R134A |
0 |
1.0104e+00 |
1.0113e+00 |
||
[158] |
CO2 |
OXYLENE |
0 |
1.0011e+00 |
1.1029e+00 |
||
[158] |
COS |
METHANE |
0 |
1.0162e+00 |
1.0848e+00 |
||
[158] |
COS |
PROPANE |
0 |
9.9601e-01 |
9.9200e-01 |
||
[158] |
COS |
H2S |
0 |
9.9425e-01 |
9.4407e-01 |
||
[158] |
CYCLOHEX |
OCTANE |
0 |
1.0012e+00 |
9.9972e-01 |
||
[158] |
CYCLOHEX |
NONANE |
0 |
9.9583e-01 |
1.0066e+00 |
||
[158] |
CYCLOHEX |
C12 |
0 |
9.9552e-01 |
1.0429e+00 |
||
[158] |
CYCLOHEX |
PROPYLEN |
0 |
1.0010e+00 |
1.0409e+00 |
||
[158] |
CYCLOHEX |
HEPTANE |
0 |
1.0012e+00 |
9.9502e-01 |
||
[158] |
CYCLOHEX |
IOCTANE |
0 |
1.0019e+00 |
9.9375e-01 |
||
[158] |
CYCLOHEX |
DMC |
0 |
1.0083e+00 |
9.2848e-01 |
||
[158] |
CYCLOHEX |
CO |
0 |
1.0076e+00 |
1.4634e+00 |
||
[158] |
CYCLOHEX |
ETHANOL |
0 |
1.0251e+00 |
9.0252e-01 |
||
[158] |
CYCLOHEX |
ACETONE |
0 |
1.0089e+00 |
9.2123e-01 |
||
[158] |
CYCLOHEX |
BENZENE |
0 |
9.9788e-01 |
9.7982e-01 |
||
[158] |
CYCLOHEX |
METHANE |
0 |
1.0156e+00 |
1.3234e+00 |
||
[158] |
CYCLOHEX |
ETHANE |
0 |
1.0054e+00 |
1.0992e+00 |
||
[158] |
CYCLOHEX |
ETHYLENE |
0 |
1.0013e+00 |
1.1204e+00 |
||
[158] |
CYCLOHEX |
PROPANE |
0 |
9.9740e-01 |
1.0358e+00 |
||
[158] |
CYCLOHEX |
R22 |
0 |
9.9094e-01 |
9.7638e-01 |
||
[158] |
CYCLOHEX |
R12 |
0 |
9.6292e-01 |
9.8900e-01 |
||
[158] |
CYCLOHEX |
NITROGEN |
0 |
9.9970e-01 |
1.4755e+00 |
||
[158] |
CYCLOHEX |
H2S |
0 |
9.8291e-01 |
1.0101e+00 |
||
[158] |
CYCLOHEX |
OXYLENE |
0 |
1.0039e+00 |
9.9006e-01 |
||
[158] |
CYCLOPEN |
D4 |
0 |
9.9608e-01 |
1.0329e+00 |
||
[158] |
CYCLOPEN |
ETHANOL |
0 |
1.0648e+00 |
8.9994e-01 |
||
[158] |
CYCLOPEN |
ARGON |
0 |
1.0206e+00 |
1.3601e+00 |
||
[158] |
CYCLOPEN |
XENON |
0 |
1.0486e+00 |
1.1773e+00 |
||
[158] |
CYCLOPRO |
R134A |
0 |
1.0162e+00 |
9.1325e-01 |
||
[158] |
D4 |
BENZENE |
0 |
9.8793e-01 |
9.8954e-01 |
||
[158] |
DECANE |
DMC |
0 |
9.8375e-01 |
9.2470e-01 |
||
[158] |
DECANE |
ETHANOL |
0 |
9.9423e-01 |
8.9711e-01 |
||
[158] |
DECANE |
ACETONE |
0 |
9.7661e-01 |
9.6708e-01 |
||
[158] |
DECANE |
BENZENE |
0 |
9.9327e-01 |
9.9831e-01 |
||
[158] |
DECANE |
ETHYLENE |
0 |
1.0532e+00 |
1.2858e+00 |
||
[158] |
DECANE |
OXYLENE |
0 |
9.9865e-01 |
9.9471e-01 |
||
[158] |
DEE |
ETHANOL |
0 |
1.0090e+00 |
9.7226e-01 |
||
[158] |
DEE |
METHANOL |
0 |
1.0042e+00 |
9.4684e-01 |
||
[158] |
DEE |
ACETONE |
0 |
1.0101e+00 |
9.7127e-01 |
||
[158] |
DEE |
BENZENE |
0 |
9.9908e-01 |
1.0023e+00 |
||
[158] |
DEE |
ETHYLENE |
0 |
1.0111e+00 |
1.1087e+00 |
||
[158] |
DEE |
SO2 |
0 |
9.8788e-01 |
1.0412e+00 |
||
[158] |
DEE |
R12 |
0 |
9.9569e-01 |
1.0279e+00 |
||
[158] |
DEE |
WATER |
0 |
9.6917e-01 |
8.4219e-01 |
||
[158] |
DMC |
ETHANOL |
0 |
1.0030e+00 |
9.4120e-01 |
||
[158] |
DMC |
METHANOL |
0 |
9.9772e-01 |
9.3765e-01 |
||
[158] |
DMC |
ACETONE |
0 |
1.0030e+00 |
9.9989e-01 |
||
[158] |
DMC |
BENZENE |
0 |
9.9844e-01 |
9.8361e-01 |
||
[158] |
DME |
CO2 |
0 |
1.0028e+00 |
1.0312e+00 |
||
[158] |
DME |
R125 |
0 |
1.0090e+00 |
1.0373e+00 |
||
[158] |
DME |
C4F10 |
0 |
1.0496e+00 |
8.6921e-01 |
||
[158] |
DME |
R143A |
0 |
1.0001e+00 |
9.9059e-01 |
||
[158] |
DME |
R236EA |
0 |
9.8075e-01 |
1.0680e+00 |
||
[158] |
DME |
R227EA |
0 |
1.0157e+00 |
1.0576e+00 |
||
[158] |
DME |
ETHANOL |
0 |
9.9876e-01 |
1.0361e+00 |
||
[158] |
DME |
METHANOL |
0 |
1.0041e+00 |
1.0055e+00 |
||
[158] |
DME |
R236FA |
0 |
9.8997e-01 |
1.0434e+00 |
||
[158] |
DME |
METHANE |
0 |
1.0096e+00 |
1.1401e+00 |
||
[158] |
DME |
R40 |
0 |
9.9969e-01 |
1.0122e+00 |
||
[158] |
DME |
PROPANE |
0 |
9.9761e-01 |
9.6354e-01 |
||
[158] |
DME |
R32 |
0 |
9.9399e-01 |
9.9941e-01 |
||
[158] |
DME |
ISOBUTAN |
0 |
1.0023e+00 |
9.6302e-01 |
||
[158] |
DME |
R22 |
0 |
1.0149e+00 |
1.0713e+00 |
||
[158] |
DME |
R134A |
0 |
9.9604e-01 |
1.0137e+00 |
||
[158] |
EBENZENE |
PXYLENE |
0 |
9.9948e-01 |
9.9905e-01 |
||
[158] |
EBENZENE |
MXYLENE |
0 |
1.0001e+00 |
9.9939e-01 |
||
[158] |
EBENZENE |
C1CC6 |
0 |
9.9896e-01 |
9.9289e-01 |
||
[158] |
EBENZENE |
TOLUENE |
0 |
1.0029e+00 |
1.0025e+00 |
||
[158] |
EBENZENE |
HEXANE |
0 |
9.9974e-01 |
9.9383e-01 |
||
[158] |
EBENZENE |
CYCLOHEX |
0 |
9.9572e-01 |
9.9414e-01 |
||
[158] |
EBENZENE |
OCTANE |
0 |
1.0008e+00 |
9.8584e-01 |
||
[158] |
EBENZENE |
NONANE |
0 |
1.0037e+00 |
9.8564e-01 |
||
[158] |
EBENZENE |
CO2 |
0 |
9.9909e-01 |
1.0915e+00 |
||
[158] |
EBENZENE |
HEPTANE |
0 |
1.0004e+00 |
9.8665e-01 |
||
[158] |
EBENZENE |
IOCTANE |
0 |
1.0010e+00 |
9.8599e-01 |
||
[158] |
EBENZENE |
ETHANOL |
0 |
1.0102e+00 |
9.0463e-01 |
||
[158] |
EBENZENE |
METHANOL |
0 |
1.0011e+00 |
8.9432e-01 |
||
[158] |
EBENZENE |
BENZENE |
0 |
1.0019e+00 |
1.0143e+00 |
||
[158] |
EBENZENE |
OXYLENE |
0 |
1.0015e+00 |
9.9924e-01 |
||
[158] |
ETHANE |
ETHYLENE |
0 |
1.0037e+00 |
9.9401e-01 |
||
[158] |
ETHANE |
KRYPTON |
0 |
1.0034e+00 |
1.0480e+00 |
||
[158] |
ETHANE |
XENON |
0 |
9.9857e-01 |
1.0096e+00 |
||
[158] |
ETHANE |
R23 |
0 |
1.0060e+00 |
8.7082e-01 |
||
[158] |
ETHANE |
R14 |
0 |
1.0148e+00 |
8.9216e-01 |
||
[158] |
ETHANE |
R116 |
0 |
1.0354e+00 |
8.9844e-01 |
||
[158] |
ETHANE |
R218 |
0 |
1.0315e+00 |
9.3581e-01 |
||
[158] |
ETHANE |
HCL |
0 |
9.9182e-01 |
9.0586e-01 |
||
[158] |
ETHANOL |
METHANOL |
0 |
1.0018e+00 |
9.9902e-01 |
||
[158] |
ETHANOL |
ACETONE |
0 |
9.9651e-01 |
9.7390e-01 |
||
[158] |
ETHANOL |
BENZENE |
0 |
9.7175e-01 |
9.1640e-01 |
||
[158] |
ETHANOL |
ETHYLENE |
0 |
1.0219e+00 |
1.1706e+00 |
||
[158] |
ETHANOL |
R32 |
0 |
9.7558e-01 |
1.0166e+00 |
||
[158] |
ETHANOL |
R152A |
0 |
9.6946e-01 |
9.7677e-01 |
||
[158] |
ETHANOL |
R21 |
0 |
9.7987e-01 |
9.0692e-01 |
||
[158] |
ETHANOL |
R22 |
0 |
9.9373e-01 |
1.0506e+00 |
||
[158] |
ETHANOL |
R23 |
0 |
9.0517e-01 |
1.0514e+00 |
||
[158] |
ETHANOL |
R113 |
0 |
9.8820e-01 |
9.0301e-01 |
||
[158] |
ETHANOL |
R114 |
0 |
9.5361e-01 |
9.3497e-01 |
||
[158] |
ETHANOL |
NITROGEN |
0 |
1.0432e+00 |
1.6391e+00 |
||
[158] |
ETHANOL |
R134A |
0 |
9.7178e-01 |
9.8183e-01 |
||
[158] |
ETHANOL |
OXYLENE |
0 |
9.8697e-01 |
9.0681e-01 |
||
[158] |
ETHYLENE |
PROPANE |
0 |
1.0037e+00 |
1.0124e+00 |
||
[158] |
ETHYLENE |
XENON |
0 |
9.9831e-01 |
9.8039e-01 |
||
[158] |
ETHYLENE |
ISOBUTAN |
0 |
9.9619e-01 |
1.0587e+00 |
||
[158] |
ETHYLENE |
NITROGEN |
0 |
9.9699e-01 |
1.0510e+00 |
||
[158] |
HCL |
CHLORINE |
0 |
1.0040e+00 |
9.6115e-01 |
||
[158] |
HEPTANE |
DMC |
0 |
9.9163e-01 |
9.2607e-01 |
||
[158] |
HEPTANE |
ETHANOL |
0 |
1.0194e+00 |
8.9810e-01 |
||
[158] |
HEPTANE |
ACETONE |
0 |
9.8841e-01 |
9.2544e-01 |
||
[158] |
HEPTANE |
BENZENE |
0 |
9.9231e-01 |
9.7482e-01 |
||
[158] |
HEPTANE |
ETHYLENE |
0 |
1.0207e+00 |
1.1797e+00 |
||
[158] |
HEPTANE |
R12 |
0 |
9.8822e-01 |
1.0339e+00 |
||
[158] |
HEPTANE |
R113 |
0 |
9.9577e-01 |
9.9057e-01 |
||
[158] |
HEPTANE |
R114 |
0 |
9.9215e-01 |
9.9663e-01 |
||
[158] |
HEPTANE |
OXYLENE |
0 |
9.9904e-01 |
9.8672e-01 |
||
[158] |
HEXANE |
CYCLOHEX |
0 |
9.9898e-01 |
9.9297e-01 |
||
[158] |
HEXANE |
PROPYLEN |
0 |
1.0164e+00 |
1.0381e+00 |
||
[158] |
HEXANE |
DME |
0 |
9.9026e-01 |
9.9219e-01 |
||
[158] |
HEXANE |
IOCTANE |
0 |
1.0067e+00 |
1.0043e+00 |
||
[158] |
HEXANE |
DEE |
0 |
1.0023e+00 |
9.9035e-01 |
||
[158] |
HEXANE |
DMC |
0 |
9.9863e-01 |
9.2986e-01 |
||
[158] |
HEXANE |
ETHANOL |
0 |
1.0274e+00 |
9.0746e-01 |
||
[158] |
HEXANE |
ACETONE |
0 |
9.9871e-01 |
9.1955e-01 |
||
[158] |
HEXANE |
BENZENE |
0 |
9.9572e-01 |
9.7222e-01 |
||
[158] |
HEXANE |
ETHYLENE |
0 |
1.0088e+00 |
1.1301e+00 |
||
[158] |
HEXANE |
XENON |
0 |
1.0196e+00 |
1.1666e+00 |
||
[158] |
HEXANE |
R22 |
0 |
9.8925e-01 |
9.9579e-01 |
||
[158] |
HEXANE |
R113 |
0 |
9.9940e-01 |
9.8509e-01 |
||
[158] |
HEXANE |
R114 |
0 |
9.9629e-01 |
9.8179e-01 |
||
[158] |
HEXANE |
HCL |
0 |
9.8541e-01 |
1.0145e+00 |
||
[158] |
HEXANE |
AMMONIA |
0 |
9.0913e-01 |
8.6636e-01 |
||
[158] |
HEXANE |
OXYLENE |
0 |
1.0010e+00 |
1.0015e+00 |
||
[158] |
HYDROGEN |
NEON |
0 |
1.0012e+00 |
8.3639e-01 |
||
[158] |
HYDROGEN |
D2 |
0 |
1.0087e+00 |
9.9511e-01 |
||
[158] |
IBUTENE |
R143A |
0 |
1.0022e+00 |
9.4375e-01 |
||
[158] |
IBUTENE |
R227EA |
0 |
1.0130e+00 |
9.2836e-01 |
||
[158] |
IBUTENE |
ETHANOL |
0 |
1.0249e+00 |
9.6241e-01 |
||
[158] |
IBUTENE |
ACETONE |
0 |
1.0140e+00 |
9.5994e-01 |
||
[158] |
IBUTENE |
R40 |
0 |
1.0005e+00 |
9.7922e-01 |
||
[158] |
IBUTENE |
PROPANE |
0 |
1.0073e+00 |
9.9305e-01 |
||
[158] |
IBUTENE |
SO2 |
0 |
9.8640e-01 |
9.4224e-01 |
||
[158] |
IBUTENE |
ISOBUTAN |
0 |
1.0002e+00 |
9.9644e-01 |
||
[158] |
IBUTENE |
R152A |
0 |
1.0008e+00 |
9.3949e-01 |
||
[158] |
IHEXANE |
HEXANE |
0 |
1.0005e+00 |
9.9860e-01 |
||
[158] |
IHEXANE |
HEPTANE |
0 |
9.9903e-01 |
1.0047e+00 |
||
[158] |
IHEXANE |
ETHANOL |
0 |
1.0146e+00 |
9.0538e-01 |
||
[158] |
IHEXANE |
METHANOL |
0 |
1.0069e+00 |
8.8008e-01 |
||
[158] |
IHEXANE |
BENZENE |
0 |
9.9361e-01 |
9.7119e-01 |
||
[158] |
IHEXANE |
PROPANE |
0 |
1.0011e+00 |
1.0350e+00 |
||
[158] |
IOCTANE |
ETHANOL |
0 |
1.0196e+00 |
8.9163e-01 |
||
[158] |
IOCTANE |
ACETONE |
0 |
9.9551e-01 |
9.3534e-01 |
||
[158] |
IOCTANE |
BENZENE |
0 |
9.9146e-01 |
9.6998e-01 |
||
[158] |
IOCTANE |
ETHANE |
0 |
1.1067e+00 |
1.2288e+00 |
||
[158] |
IOCTANE |
NITROGEN |
0 |
1.0090e+00 |
1.5545e+00 |
||
[158] |
IOCTANE |
H2S |
0 |
9.7756e-01 |
1.0102e+00 |
||
[158] |
IOCTANE |
OXYLENE |
0 |
9.9859e-01 |
9.8905e-01 |
||
[158] |
ISOBUTAN |
R152A |
0 |
9.9318e-01 |
9.1845e-01 |
||
[158] |
ISOBUTAN |
R23 |
0 |
9.7853e-01 |
8.9794e-01 |
||
[158] |
ISOBUTAN |
R13 |
0 |
9.9553e-01 |
9.8045e-01 |
||
[158] |
ISOBUTAN |
R1234YF |
0 |
1.0073e+00 |
9.3536e-01 |
||
[158] |
ISOBUTAN |
R134A |
0 |
1.0014e+00 |
8.9668e-01 |
||
[158] |
KRYPTON |
ARGON |
0 |
9.9980e-01 |
1.0046e+00 |
||
[158] |
KRYPTON |
AMMONIA |
0 |
1.0118e+00 |
9.2419e-01 |
||
[158] |
KRYPTON |
OXYGEN |
0 |
9.9555e-01 |
9.8848e-01 |
||
[158] |
MDM |
D4 |
0 |
9.9826e-01 |
9.9969e-01 |
||
[158] |
METHANE |
ETHYLENE |
0 |
1.0065e+00 |
1.0233e+00 |
||
[158] |
METHANE |
KRYPTON |
0 |
1.0004e+00 |
9.9368e-01 |
||
[158] |
METHANE |
SO2 |
0 |
1.0369e+00 |
1.0708e+00 |
||
[158] |
METHANOL |
ACETONE |
0 |
1.0009e+00 |
9.7135e-01 |
||
[158] |
METHANOL |
BENZENE |
0 |
9.7703e-01 |
9.0254e-01 |
||
[158] |
METHANOL |
XENON |
0 |
9.3558e-01 |
7.7335e-01 |
||
[158] |
METHANOL |
SO2 |
0 |
9.7373e-01 |
1.0239e+00 |
||
[158] |
METHANOL |
R32 |
0 |
9.9300e-01 |
1.0117e+00 |
||
[158] |
METHANOL |
R152A |
0 |
1.0115e+00 |
9.8828e-01 |
||
[158] |
METHANOL |
R21 |
0 |
1.0318e+00 |
9.1282e-01 |
||
[158] |
METHANOL |
R22 |
0 |
1.0026e+00 |
1.0375e+00 |
||
[158] |
METHANOL |
HCL |
0 |
1.1103e+00 |
1.6505e+00 |
||
[158] |
METHANOL |
WATER |
0 |
9.9676e-01 |
9.6774e-01 |
||
[158] |
METHANOL |
OXYGEN |
0 |
1.0755e+00 |
1.5018e+00 |
||
[158] |
METHANOL |
R134A |
0 |
1.0078e+00 |
9.8889e-01 |
||
[158] |
MM |
TOLUENE |
0 |
9.9910e-01 |
9.7446e-01 |
||
[158] |
MM |
HEXANE |
0 |
1.0050e+00 |
1.0070e+00 |
||
[158] |
MM |
ETHANOL |
0 |
1.0050e+00 |
9.1176e-01 |
||
[158] |
MM |
METHANOL |
0 |
9.7448e-01 |
9.0636e-01 |
||
[158] |
MPALMITA |
MLINOLEA |
0 |
1.0026e+00 |
9.9543e-01 |
||
[158] |
MPALMITA |
PROPANE |
0 |
1.0851e+00 |
1.2133e+00 |
||
[158] |
MSTEARAT |
MOLEATE |
0 |
1.0012e+00 |
9.9836e-01 |
||
[158] |
MSTEARAT |
CO2 |
0 |
1.1093e+00 |
1.4526e+00 |
||
[158] |
MXYLENE |
TOLUENE |
0 |
9.9650e-01 |
9.9601e-01 |
||
[158] |
MXYLENE |
HEXANE |
0 |
9.8709e-01 |
9.9672e-01 |
||
[158] |
MXYLENE |
CYCLOHEX |
0 |
9.9686e-01 |
9.9328e-01 |
||
[158] |
MXYLENE |
OCTANE |
0 |
1.0003e+00 |
9.9296e-01 |
||
[158] |
MXYLENE |
NONANE |
0 |
1.0023e+00 |
9.8031e-01 |
||
[158] |
MXYLENE |
C11 |
0 |
9.9910e-01 |
1.0020e+00 |
||
[158] |
MXYLENE |
PROPYLEN |
0 |
1.0066e+00 |
1.0981e+00 |
||
[158] |
MXYLENE |
DECANE |
0 |
9.9965e-01 |
9.9369e-01 |
||
[158] |
MXYLENE |
HEPTANE |
0 |
1.0015e+00 |
9.8960e-01 |
||
[158] |
MXYLENE |
IOCTANE |
0 |
1.0037e+00 |
1.0016e+00 |
||
[158] |
MXYLENE |
CO |
0 |
1.0159e+00 |
1.5975e+00 |
||
[158] |
MXYLENE |
METHANOL |
0 |
1.0026e+00 |
8.8973e-01 |
||
[158] |
MXYLENE |
BENZENE |
0 |
1.0010e+00 |
1.0046e+00 |
||
[158] |
MXYLENE |
ETHANE |
0 |
1.0122e+00 |
1.1762e+00 |
||
[158] |
MXYLENE |
PROPANE |
0 |
1.0035e+00 |
1.0836e+00 |
||
[158] |
MXYLENE |
AMMONIA |
0 |
9.5923e-01 |
9.5719e-01 |
||
[158] |
MXYLENE |
H2S |
0 |
1.0284e+00 |
1.1058e+00 |
||
[158] |
MXYLENE |
OXYLENE |
0 |
1.0007e+00 |
9.9997e-01 |
||
[158] |
N2O |
C12 |
0 |
9.6576e-01 |
1.2736e+00 |
||
[158] |
N2O |
R125 |
0 |
9.7626e-01 |
7.7302e-01 |
||
[158] |
N2O |
METHANE |
0 |
1.0114e+00 |
1.0235e+00 |
||
[158] |
NEON |
D2 |
0 |
1.0113e+00 |
8.3393e-01 |
||
[158] |
NEOPENTN |
METHANE |
0 |
1.0147e+00 |
1.2251e+00 |
||
[158] |
NEOPENTN |
PROPANE |
0 |
1.0203e+00 |
1.0591e+00 |
||
[158] |
NEOPENTN |
ARGON |
0 |
9.9981e-01 |
1.2871e+00 |
||
[158] |
NEOPENTN |
H2S |
0 |
9.7515e-01 |
9.3089e-01 |
||
[158] |
NITROGEN |
D2 |
0 |
9.8463e-01 |
1.2290e+00 |
||
[158] |
NONANE |
PROPYLEN |
0 |
1.0160e+00 |
1.1170e+00 |
||
[158] |
NONANE |
DMC |
0 |
9.7926e-01 |
9.3384e-01 |
||
[158] |
NONANE |
ETHANOL |
0 |
9.9198e-01 |
8.9624e-01 |
||
[158] |
NONANE |
ACETONE |
0 |
9.8564e-01 |
9.4280e-01 |
||
[158] |
NONANE |
BENZENE |
0 |
9.9513e-01 |
9.7411e-01 |
||
[158] |
NONANE |
ETHYLENE |
0 |
1.0337e+00 |
1.2605e+00 |
||
[158] |
NONANE |
OXYLENE |
0 |
9.9710e-01 |
9.8501e-01 |
||
[158] |
OCTANE |
C12 |
0 |
9.9834e-01 |
1.0217e+00 |
||
[158] |
OCTANE |
IBUTENE |
0 |
1.0071e+00 |
1.0535e+00 |
||
[158] |
OCTANE |
IOCTANE |
0 |
9.9871e-01 |
1.0041e+00 |
||
[158] |
OCTANE |
DMC |
0 |
9.8679e-01 |
9.2726e-01 |
||
[158] |
OCTANE |
ETHANOL |
0 |
1.0091e+00 |
8.9471e-01 |
||
[158] |
OCTANE |
BENZENE |
0 |
9.9210e-01 |
9.8037e-01 |
||
[158] |
OCTANE |
ETHYLENE |
0 |
1.0318e+00 |
1.2181e+00 |
||
[158] |
OCTANE |
R12 |
0 |
9.9653e-01 |
1.0608e+00 |
||
[158] |
OCTANE |
AMMONIA |
0 |
9.5849e-01 |
6.2644e-01 |
||
[158] |
OCTANE |
OXYLENE |
0 |
9.9933e-01 |
9.9245e-01 |
||
[158] |
PENTANE |
CYCLOHEX |
0 |
9.9950e-01 |
9.9588e-01 |
||
[158] |
PENTANE |
DME |
0 |
9.6552e-01 |
9.9489e-01 |
||
[158] |
PENTANE |
R141B |
0 |
1.0027e+00 |
9.7700e-01 |
||
[158] |
PENTANE |
SF6 |
0 |
9.7466e-01 |
9.2912e-01 |
||
[158] |
PENTANE |
R1234ZE |
0 |
9.8894e-01 |
9.3824e-01 |
||
[158] |
PENTANE |
RE347MCC |
0 |
1.0098e+00 |
9.2810e-01 |
||
[158] |
PENTANE |
R245FA |
0 |
1.0069e+00 |
8.9534e-01 |
||
[158] |
PENTANE |
NEOPENTN |
0 |
9.9950e-01 |
1.0024e+00 |
||
[158] |
PENTANE |
ACETONE |
0 |
1.0055e+00 |
9.2363e-01 |
||
[158] |
PENTANE |
C5F12 |
0 |
1.0277e+00 |
8.9140e-01 |
||
[158] |
PENTANE |
BENZENE |
0 |
9.9813e-01 |
9.7605e-01 |
||
[158] |
PENTANE |
R152A |
0 |
9.8932e-01 |
9.2023e-01 |
||
[158] |
PENTANE |
R22 |
0 |
9.8621e-01 |
9.6034e-01 |
||
[158] |
PENTANE |
R23 |
0 |
9.6622e-01 |
9.4007e-01 |
||
[158] |
PENTANE |
NOVEC649 |
0 |
1.0342e+00 |
9.0539e-01 |
||
[158] |
PENTANE |
R114 |
0 |
9.9646e-01 |
9.7011e-01 |
||
[158] |
PENTANE |
AMMONIA |
0 |
9.1115e-01 |
8.4450e-01 |
||
[158] |
PROPANE |
XENON |
0 |
1.0049e+00 |
1.0413e+00 |
||
[158] |
PROPANE |
SO2 |
0 |
9.9024e-01 |
8.7281e-01 |
||
[158] |
PROPANE |
R32 |
0 |
1.0007e+00 |
8.6421e-01 |
||
[158] |
PROPANE |
CYCLOPRO |
0 |
1.0024e+00 |
9.8041e-01 |
||
[158] |
PROPANE |
R152A |
0 |
1.0122e+00 |
9.2009e-01 |
||
[158] |
PROPANE |
R23 |
0 |
9.8814e-01 |
8.7585e-01 |
||
[158] |
PROPANE |
R113 |
0 |
1.0047e+00 |
1.0145e+00 |
||
[158] |
PROPANE |
R114 |
0 |
1.0033e+00 |
9.8055e-01 |
||
[158] |
PROPANE |
R116 |
0 |
1.0166e+00 |
8.9173e-01 |
||
[158] |
PROPANE |
HCL |
0 |
9.7902e-01 |
9.1760e-01 |
||
[158] |
PROPANE |
AMMONIA |
0 |
9.6020e-01 |
7.9017e-01 |
||
[158] |
PROPANE |
R134A |
0 |
1.0115e+00 |
8.9674e-01 |
||
[158] |
PROPYLEN |
DME |
0 |
1.0027e+00 |
9.8909e-01 |
||
[158] |
PROPYLEN |
R1216 |
0 |
1.0190e+00 |
9.3686e-01 |
||
[158] |
PROPYLEN |
DECANE |
0 |
9.5720e-01 |
1.1910e+00 |
||
[158] |
PROPYLEN |
CO2 |
0 |
9.8798e-01 |
9.3465e-01 |
||
[158] |
PROPYLEN |
HEPTANE |
0 |
1.0089e+00 |
1.0626e+00 |
||
[158] |
PROPYLEN |
R125 |
0 |
1.0073e+00 |
9.2944e-01 |
||
[158] |
PROPYLEN |
IOCTANE |
0 |
9.6453e-01 |
1.1139e+00 |
||
[158] |
PROPYLEN |
ACETONE |
0 |
1.0199e+00 |
9.9014e-01 |
||
[158] |
PROPYLEN |
BENZENE |
0 |
1.0027e+00 |
1.0288e+00 |
||
[158] |
PROPYLEN |
METHANE |
0 |
1.0044e+00 |
1.1175e+00 |
||
[158] |
PROPYLEN |
ETHANE |
0 |
1.0007e+00 |
1.0056e+00 |
||
[158] |
PROPYLEN |
ETHYLENE |
0 |
9.9793e-01 |
1.0155e+00 |
||
[158] |
PROPYLEN |
PROPANE |
0 |
1.0002e+00 |
9.9350e-01 |
||
[158] |
PROPYLEN |
KRYPTON |
0 |
1.0029e+00 |
1.0875e+00 |
||
[158] |
PROPYLEN |
XENON |
0 |
9.9031e-01 |
1.0122e+00 |
||
[158] |
PROPYLEN |
R32 |
0 |
9.9634e-01 |
9.0627e-01 |
||
[158] |
PROPYLEN |
ISOBUTAN |
0 |
9.7074e-01 |
1.0126e+00 |
||
[158] |
PROPYLEN |
R152A |
0 |
1.0118e+00 |
9.4791e-01 |
||
[158] |
PROPYLEN |
R22 |
0 |
1.0010e+00 |
9.7836e-01 |
||
[158] |
PROPYLEN |
R23 |
0 |
9.9184e-01 |
9.1810e-01 |
||
[158] |
PROPYLEN |
R142B |
0 |
1.0065e+00 |
9.9250e-01 |
||
[158] |
PROPYLEN |
R12 |
0 |
1.0027e+00 |
9.8830e-01 |
||
[158] |
PROPYLEN |
R13 |
0 |
9.9688e-01 |
9.5923e-01 |
||
[158] |
PROPYLEN |
R114 |
0 |
1.0124e+00 |
9.7683e-01 |
||
[158] |
PROPYLEN |
R115 |
0 |
1.0149e+00 |
9.4167e-01 |
||
[158] |
PROPYLEN |
R116 |
0 |
1.0140e+00 |
8.7937e-01 |
||
[158] |
PROPYLEN |
AMMONIA |
0 |
9.7530e-01 |
8.4826e-01 |
||
[158] |
PROPYLEN |
R134A |
0 |
1.0136e+00 |
9.3494e-01 |
||
[158] |
PROPYNE |
AMMONIA |
0 |
9.9309e-01 |
9.4154e-01 |
||
[158] |
PXYLENE |
C1CC6 |
0 |
9.9867e-01 |
9.9463e-01 |
||
[158] |
PXYLENE |
TOLUENE |
0 |
9.9915e-01 |
9.9999e-01 |
||
[158] |
PXYLENE |
HEXANE |
0 |
9.9929e-01 |
9.9711e-01 |
||
[158] |
PXYLENE |
CYCLOHEX |
0 |
9.9816e-01 |
9.9198e-01 |
||
[158] |
PXYLENE |
OCTANE |
0 |
1.0021e+00 |
9.8651e-01 |
||
[158] |
PXYLENE |
NONANE |
0 |
9.9939e-01 |
9.9387e-01 |
||
[158] |
PXYLENE |
C11 |
0 |
1.0002e+00 |
1.0018e+00 |
||
[158] |
PXYLENE |
PROPYLEN |
0 |
1.0093e+00 |
1.0943e+00 |
||
[158] |
PXYLENE |
DECANE |
0 |
1.0010e+00 |
9.9262e-01 |
||
[158] |
PXYLENE |
CO2 |
0 |
9.9661e-01 |
1.1043e+00 |
||
[158] |
PXYLENE |
HEPTANE |
0 |
1.0006e+00 |
9.8957e-01 |
||
[158] |
PXYLENE |
IOCTANE |
0 |
1.0007e+00 |
9.9104e-01 |
||
[158] |
PXYLENE |
CO |
0 |
1.0185e+00 |
1.6215e+00 |
||
[158] |
PXYLENE |
ETHANOL |
0 |
1.0224e+00 |
9.0590e-01 |
||
[158] |
PXYLENE |
ACETONE |
0 |
9.9930e-01 |
9.7520e-01 |
||
[158] |
PXYLENE |
BENZENE |
0 |
9.9888e-01 |
1.0064e+00 |
||
[158] |
PXYLENE |
NITROGEN |
0 |
1.0053e+00 |
1.6346e+00 |
||
[158] |
R11 |
R12 |
0 |
1.0073e+00 |
1.0010e+00 |
||
[158] |
R11 |
R13 |
0 |
9.9697e-01 |
1.0142e+00 |
||
[158] |
R113 |
R114 |
0 |
9.9859e-01 |
1.0048e+00 |
||
[158] |
R116 |
R134A |
0 |
1.0128e+00 |
9.3618e-01 |
||
[158] |
R12 |
R13 |
0 |
9.9071e-01 |
9.7345e-01 |
||
[158] |
R12 |
R114 |
0 |
9.9836e-01 |
9.9126e-01 |
||
[158] |
R12 |
R134A |
0 |
1.0075e+00 |
9.4100e-01 |
||
[158] |
R1216 |
CO2 |
0 |
9.8341e-01 |
9.8477e-01 |
||
[158] |
R1216 |
R123 |
0 |
1.0049e+00 |
9.7467e-01 |
||
[158] |
R1216 |
ETHANE |
0 |
9.8856e-01 |
9.3961e-01 |
||
[158] |
R1216 |
ETHYLENE |
0 |
9.8170e-01 |
9.9653e-01 |
||
[158] |
R1216 |
PROPANE |
0 |
9.8801e-01 |
9.2233e-01 |
||
[158] |
R1216 |
R22 |
0 |
9.9593e-01 |
9.6186e-01 |
||
[158] |
R1216 |
R12 |
0 |
1.0004e+00 |
9.7942e-01 |
||
[158] |
R123 |
R32 |
0 |
9.8824e-01 |
9.8194e-01 |
||
[158] |
R123 |
R22 |
0 |
9.9482e-01 |
1.0128e+00 |
||
[158] |
R123 |
WATER |
0 |
1.1000e+00 |
9.5847e-01 |
||
[158] |
R123 |
R134A |
0 |
9.9393e-01 |
9.8277e-01 |
||
[158] |
R1234YF |
R134A |
0 |
9.9972e-01 |
9.8643e-01 |
||
[158] |
R1234ZE |
PROPANE |
0 |
9.8682e-01 |
9.3387e-01 |
||
[158] |
R1234ZE |
ISOBUTAN |
0 |
9.9412e-01 |
9.2820e-01 |
||
[158] |
R1234ZE |
R152A |
0 |
9.9902e-01 |
9.9579e-01 |
||
[158] |
R124 |
R142B |
0 |
9.9802e-01 |
1.0032e+00 |
||
[158] |
R124 |
R134A |
0 |
9.9881e-01 |
9.8961e-01 |
||
[158] |
R125 |
RE143A |
0 |
1.0010e+00 |
1.0052e+00 |
||
[158] |
R125 |
R236EA |
0 |
9.9947e-01 |
1.0105e+00 |
||
[158] |
R125 |
R227EA |
0 |
1.0010e+00 |
1.0030e+00 |
||
[158] |
R125 |
R245FA |
0 |
9.9836e-01 |
1.0132e+00 |
||
[158] |
R125 |
ETHANOL |
0 |
9.9540e-01 |
1.0504e+00 |
||
[158] |
R125 |
R236FA |
0 |
9.9960e-01 |
1.0103e+00 |
||
[158] |
R125 |
PROPANE |
0 |
9.9125e-01 |
8.9892e-01 |
||
[158] |
R125 |
CYCLOPRO |
0 |
9.8501e-01 |
9.1039e-01 |
||
[158] |
R125 |
ISOBUTAN |
0 |
1.0116e+00 |
9.0644e-01 |
||
[158] |
R125 |
R152A |
0 |
9.9429e-01 |
1.0028e+00 |
||
[158] |
R125 |
R23 |
0 |
9.9685e-01 |
1.0031e+00 |
||
[158] |
R125 |
R1234YF |
0 |
1.0009e+00 |
9.9876e-01 |
||
[158] |
R125 |
R115 |
0 |
1.0003e+00 |
9.6147e-01 |
||
[158] |
R125 |
AMMONIA |
0 |
9.5650e-01 |
9.6866e-01 |
||
[158] |
R13 |
R14 |
0 |
9.9884e-01 |
9.9334e-01 |
||
[158] |
R13 |
R113 |
0 |
1.0006e+00 |
1.0503e+00 |
||
[158] |
R13 |
AMMONIA |
0 |
9.6284e-01 |
7.6464e-01 |
||
[158] |
R13 |
NITROGEN |
0 |
1.0254e+00 |
1.2407e+00 |
||
[158] |
R14 |
NITROGEN |
0 |
1.0309e+00 |
1.1099e+00 |
||
[158] |
R141B |
R134A |
0 |
9.9289e-01 |
9.6823e-01 |
||
[158] |
R142B |
R12 |
0 |
9.8821e-01 |
9.7650e-01 |
||
[158] |
R142B |
R113 |
0 |
1.0034e+00 |
9.8837e-01 |
||
[158] |
R142B |
HCL |
0 |
9.9179e-01 |
1.0022e+00 |
||
[158] |
R142B |
R134A |
0 |
9.9824e-01 |
9.8544e-01 |
||
[158] |
R143A |
R236FA |
0 |
9.9911e-01 |
1.0183e+00 |
||
[158] |
R143A |
PROPANE |
0 |
9.9023e-01 |
9.1581e-01 |
||
[158] |
R143A |
R32 |
0 |
9.9734e-01 |
9.7488e-01 |
||
[158] |
R143A |
ISOBUTAN |
0 |
9.9953e-01 |
9.1950e-01 |
||
[158] |
R143A |
R152A |
0 |
9.9955e-01 |
9.9038e-01 |
||
[158] |
R143A |
R23 |
0 |
9.9197e-01 |
1.0038e+00 |
||
[158] |
R143A |
R12 |
0 |
1.0143e+00 |
9.5199e-01 |
||
[158] |
R143A |
R1234YF |
0 |
9.9976e-01 |
9.9523e-01 |
||
[158] |
R143A |
R116 |
0 |
9.9007e-01 |
9.3499e-01 |
||
[158] |
R152A |
R22 |
0 |
1.0024e+00 |
1.0117e+00 |
||
[158] |
R152A |
R23 |
0 |
1.0004e+00 |
1.0238e+00 |
||
[158] |
R152A |
R12 |
0 |
9.8159e-01 |
9.4387e-01 |
||
[158] |
R152A |
R1234YF |
0 |
1.0037e+00 |
9.8112e-01 |
||
[158] |
R152A |
R113 |
0 |
1.0121e+00 |
9.5473e-01 |
||
[158] |
R161 |
R125 |
0 |
9.8968e-01 |
9.9311e-01 |
||
[158] |
R161 |
R143A |
0 |
1.0007e+00 |
9.9556e-01 |
||
[158] |
R161 |
R227EA |
0 |
1.0097e+00 |
1.0246e+00 |
||
[158] |
R161 |
R32 |
0 |
1.0024e+00 |
9.8909e-01 |
||
[158] |
R161 |
R1234YF |
0 |
1.0022e+00 |
9.8828e-01 |
||
[158] |
R161 |
R134A |
0 |
9.9899e-01 |
1.0062e+00 |
||
[158] |
R218 |
R134A |
0 |
1.0012e+00 |
9.2280e-01 |
||
[158] |
R22 |
R23 |
0 |
9.9569e-01 |
9.8752e-01 |
||
[158] |
R22 |
R142B |
0 |
9.9572e-01 |
1.0065e+00 |
||
[158] |
R22 |
R11 |
0 |
1.0004e+00 |
9.7759e-01 |
||
[158] |
R22 |
R12 |
0 |
1.0035e+00 |
9.6477e-01 |
||
[158] |
R22 |
R113 |
0 |
1.0118e+00 |
9.9757e-01 |
||
[158] |
R22 |
R114 |
0 |
9.9701e-01 |
9.6580e-01 |
||
[158] |
R22 |
R115 |
0 |
9.8598e-01 |
9.4989e-01 |
||
[158] |
R22 |
R116 |
0 |
1.0033e+00 |
9.1302e-01 |
||
[158] |
R22 |
R218 |
0 |
1.0176e+00 |
9.1598e-01 |
||
[158] |
R22 |
R134A |
0 |
1.0003e+00 |
9.9196e-01 |
||
[158] |
R227EA |
PROPANE |
0 |
9.7919e-01 |
9.1449e-01 |
||
[158] |
R227EA |
R32 |
0 |
9.8611e-01 |
9.7064e-01 |
||
[158] |
R227EA |
ISOBUTAN |
0 |
9.8691e-01 |
9.0916e-01 |
||
[158] |
R227EA |
R152A |
0 |
9.9128e-01 |
9.9527e-01 |
||
[158] |
R227EA |
R23 |
0 |
9.8860e-01 |
1.0021e+00 |
||
[158] |
R227EA |
R1234YF |
0 |
1.0006e+00 |
9.9916e-01 |
||
[158] |
R227EA |
NITROGEN |
0 |
1.0295e+00 |
1.4095e+00 |
||
[158] |
R227EA |
R134A |
0 |
9.9865e-01 |
9.8915e-01 |
||
[158] |
R23 |
R11 |
0 |
1.0215e+00 |
9.4638e-01 |
||
[158] |
R23 |
R12 |
0 |
1.0080e+00 |
9.3086e-01 |
||
[158] |
R23 |
R13 |
0 |
9.9767e-01 |
9.3027e-01 |
||
[158] |
R23 |
R14 |
0 |
9.8355e-01 |
9.4295e-01 |
||
[158] |
R23 |
R113 |
0 |
1.0296e+00 |
9.8801e-01 |
||
[158] |
R23 |
R114 |
0 |
1.0242e+00 |
9.6230e-01 |
||
[158] |
R23 |
R116 |
0 |
1.0031e+00 |
9.1114e-01 |
||
[158] |
R23 |
IPENTANE |
0 |
1.0293e+00 |
9.3001e-01 |
||
[158] |
R23 |
R134A |
0 |
9.9755e-01 |
1.0219e+00 |
||
[158] |
R236EA |
PROPANE |
0 |
9.7816e-01 |
9.2015e-01 |
||
[158] |
R236EA |
R32 |
0 |
9.9812e-01 |
1.0116e+00 |
||
[158] |
R236FA |
PROPANE |
0 |
9.7844e-01 |
9.1493e-01 |
||
[158] |
R236FA |
R32 |
0 |
9.9365e-01 |
9.9661e-01 |
||
[158] |
R236FA |
R134A |
0 |
1.0004e+00 |
1.0020e+00 |
||
[158] |
R245FA |
PROPANE |
0 |
9.7923e-01 |
9.2286e-01 |
||
[158] |
R245FA |
ISOBUTAN |
0 |
9.8661e-01 |
9.0803e-01 |
||
[158] |
R245FA |
IPENTANE |
0 |
1.0118e+00 |
9.0433e-01 |
||
[158] |
R32 |
ISOBUTAN |
0 |
1.0241e+00 |
8.6238e-01 |
||
[158] |
R32 |
R152A |
0 |
1.0003e+00 |
9.9709e-01 |
||
[158] |
R32 |
R23 |
0 |
9.9884e-01 |
1.0038e+00 |
||
[158] |
R32 |
R142B |
0 |
1.0121e+00 |
9.7510e-01 |
||
[158] |
R32 |
HCL |
0 |
9.9749e-01 |
9.9760e-01 |
||
[158] |
R365MFC |
IPENTANE |
0 |
9.8683e-01 |
9.2380e-01 |
||
[158] |
R40 |
XENON |
0 |
9.6464e-01 |
1.0349e+00 |
||
[158] |
R40 |
HCL |
0 |
1.0157e+00 |
1.0826e+00 |
||
[158] |
R41 |
R40 |
0 |
1.0048e+00 |
9.9810e-01 |
||
[158] |
R41 |
XENON |
0 |
9.7753e-01 |
9.1395e-01 |
||
[158] |
R41 |
HCL |
0 |
1.0129e+00 |
1.1090e+00 |
||
[158] |
RC318 |
R1216 |
0 |
9.9614e-01 |
1.0043e+00 |
||
[158] |
RC318 |
PROPANE |
0 |
9.7678e-01 |
9.2320e-01 |
||
[158] |
RC318 |
R22 |
0 |
9.4996e-01 |
9.6966e-01 |
||
[158] |
RC318 |
R12 |
0 |
9.9775e-01 |
9.6907e-01 |
||
[158] |
RC318 |
R218 |
0 |
9.9615e-01 |
1.0425e+00 |
||
[158] |
RE143A |
R134A |
0 |
1.0004e+00 |
9.9594e-01 |
||
[158] |
RE347MCC |
NOVEC649 |
0 |
1.0129e+00 |
9.7915e-01 |
||
[158] |
SF6 |
XENON |
0 |
9.6469e-01 |
9.2846e-01 |
||
[158] |
SF6 |
R32 |
0 |
1.0017e+00 |
8.6502e-01 |
||
[158] |
SF6 |
R23 |
0 |
1.0056e+00 |
9.1843e-01 |
||
[158] |
SF6 |
R113 |
0 |
9.2964e-01 |
1.0696e+00 |
||
[158] |
SO2 |
R32 |
0 |
9.9763e-01 |
9.9968e-01 |
||
[158] |
SO2 |
HCL |
0 |
1.0058e+00 |
1.0514e+00 |
||
[158] |
SO2 |
OXYGEN |
0 |
1.0159e+00 |
1.1808e+00 |
||
[158] |
T2BUTENE |
ETHANOL |
0 |
1.0265e+00 |
9.5288e-01 |
||
[158] |
T2BUTENE |
METHANOL |
0 |
1.0216e+00 |
9.0748e-01 |
||
[158] |
T2BUTENE |
ACETONE |
0 |
1.0152e+00 |
9.5011e-01 |
||
[158] |
TOLUENE |
PENTANE |
0 |
9.9948e-01 |
9.9282e-01 |
||
[158] |
TOLUENE |
HEXANE |
0 |
1.0012e+00 |
9.8316e-01 |
||
[158] |
TOLUENE |
CYCLOHEX |
0 |
9.9824e-01 |
9.8779e-01 |
||
[158] |
TOLUENE |
OCTANE |
0 |
1.0034e+00 |
9.8036e-01 |
||
[158] |
TOLUENE |
NONANE |
0 |
1.0056e+00 |
9.8072e-01 |
||
[158] |
TOLUENE |
C12 |
0 |
1.0049e+00 |
1.0173e+00 |
||
[158] |
TOLUENE |
DECANE |
0 |
1.0072e+00 |
9.9245e-01 |
||
[158] |
TOLUENE |
CO2 |
0 |
9.9501e-01 |
1.0668e+00 |
||
[158] |
TOLUENE |
HEPTANE |
0 |
1.0032e+00 |
9.8136e-01 |
||
[158] |
TOLUENE |
IOCTANE |
0 |
1.0050e+00 |
9.7790e-01 |
||
[158] |
TOLUENE |
R41 |
0 |
1.0252e+00 |
1.0971e+00 |
||
[158] |
TOLUENE |
ETHANOL |
0 |
1.0194e+00 |
9.0682e-01 |
||
[158] |
TOLUENE |
METHANOL |
0 |
1.0183e+00 |
8.9100e-01 |
||
[158] |
TOLUENE |
ACETONE |
0 |
1.0015e+00 |
9.7643e-01 |
||
[158] |
TOLUENE |
BENZENE |
0 |
9.9985e-01 |
1.0018e+00 |
||
[158] |
TOLUENE |
ETHANE |
0 |
1.0046e+00 |
1.1276e+00 |
||
[158] |
TOLUENE |
PROPANE |
0 |
9.9427e-01 |
1.0428e+00 |
||
[158] |
TOLUENE |
SO2 |
0 |
9.8880e-01 |
1.0211e+00 |
||
[158] |
TOLUENE |
R32 |
0 |
9.8427e-01 |
9.8173e-01 |
||
[158] |
TOLUENE |
R23 |
0 |
1.0319e+00 |
1.0705e+00 |
||
[158] |
TOLUENE |
R14 |
0 |
1.0866e+00 |
1.1883e+00 |
||
[158] |
TOLUENE |
H2S |
0 |
1.0175e+00 |
1.0833e+00 |
||
[158] |
TOLUENE |
IPENTANE |
0 |
9.8988e-01 |
9.9749e-01 |
||
[158] |
TOLUENE |
OXYLENE |
0 |
1.0017e+00 |
1.0021e+00 |
||
[158] |
WATER |
D2O |
0 |
1.0042e+00 |
1.0038e+00 |
||
[158] |
XENON |
CYCLOPRO |
0 |
9.3427e-01 |
9.4711e-01 |
||
[158] |
XENON |
HCL |
0 |
1.0177e+00 |
9.0579e-01 |
||
[159] |
R245fa |
R134a |
Methane-Ethane |
0.107754 |
1.0000e+00 |
1.0064e+00 |
|
[160] |
R1234ze(E) |
R32 |
Methane-Propane |
-0.265419 |
9.9658e-01 |
9.7786e-01 |
|
[160] |
R32 |
R1234yf |
Methane-CarbonDioxide |
-0.277708 |
1.0005e+00 |
9.4854e-01 |
