Methanol¶

References¶

Equation of State¶

K. M. de Reuck and R. J. B. Craven. Methanol: International Thermodynamic Tables of the Fluid State - 12. Blackwell Scientific Publications, Oxford, United Kingdom, 1993.

Thermal Conductivity¶

E. A. Sykioti, M. J. Assael, M. L. Huber, and R. A. Perkins. Reference Correlation of the Thermal Conductivity of Methanol from the Triple Point to 660 K and up to 245 MPa. J. Phys. Chem. Ref. Data, 42:043101, 2013. doi:10.1063/1.4829449.

Viscosity¶

Hong Wei Xiang, Arno Laesecke, and Marcia L. Huber. A New Reference Correlation for the Viscosity of Methanol. J. Phys. Chem. Ref. Data, 35(4):1597–1:24, 2006. doi:10.1063/1.2360605.

Melting Line¶

K. M. de Reuck and R. J. B. Craven. Methanol: International Thermodynamic Tables of the Fluid State - 12. Blackwell Scientific Publications, Oxford, United Kingdom, 1993.

Surface Tension¶

A. Mulero, I. Cachadiña, and M. I. Parra. Recommended Correlations for the Surface Tension of Common Fluids. J. Phys. Chem. Ref. Data, 41(4):043105–1:13, 2012. doi:10.1063/1.4768782.

Aliases¶

methanol, METHANOL

Fluid Information¶

Parameter, Value
General
Molar mass [kg/mol]	0.03204216
CAS number	67-56-1
ASHRAE class	UNKNOWN
Formula	CH₄O
Acentric factor	0.5649374879079412
InChI	InChI=1S/CH4O/c1-2/h2H,1H3
InChIKey	OKKJLVBELUTLKV-UHFFFAOYSA-N
SMILES	CO
ChemSpider ID	864
Limits
Maximum temperature [K]	620.0
Maximum pressure [Pa]	800000000.0
Triple point
Triple point temperature [K]	175.61
Triple point pressure [Pa]	0.18635025970147673
Critical point
Critical point temperature [K]	513.3795127230579
Critical point density [kg/m3]	281.4957131632719
Critical point density [mol/m3]	8785.166579383907
Critical point pressure [Pa]	8215853.274947686

REFPROP Validation Data¶

Note

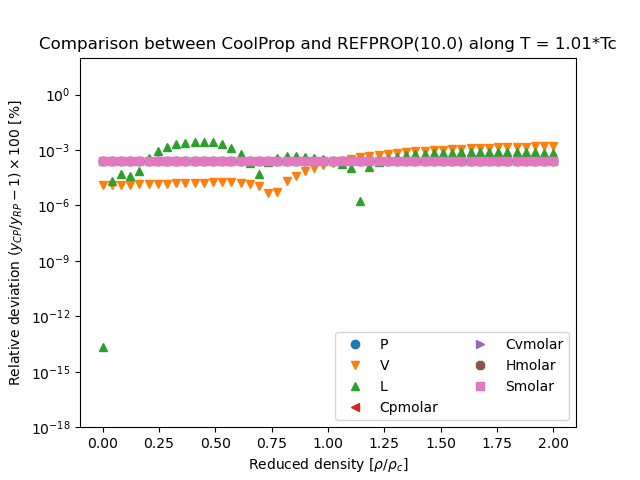

This figure compares the results generated from CoolProp and those generated from REFPROP. They are all results obtained in the form \(Y(T,\rho)\), where \(Y\) is the parameter of interest and which for all EOS is a direct evaluation of the EOS

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

Consistency Plots¶

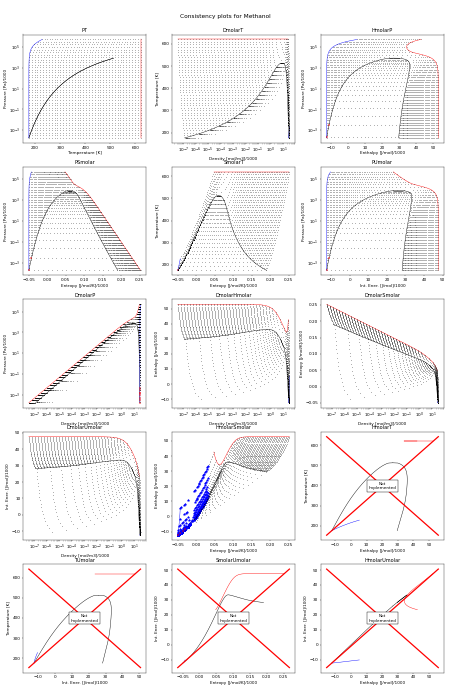

The following figure shows all the flash routines that are available for this fluid. A red + is a failure of the flash routine, a black dot is a success. Hopefully you will only see black dots. The red curve is the maximum temperature curve, and the blue curve is the melting line if one is available for the fluid.

In this figure, we start off with a state point given by T,P and then we calculate each of the other possible output pairs in turn, and then try to re-calculate T,P from the new input pair. If we don’t arrive back at the original T,P values, there is a problem in the flash routine in CoolProp. For more information on how these figures were generated, see CoolProp.Plots.ConsistencyPlots

Note

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

Superancillary Plots¶

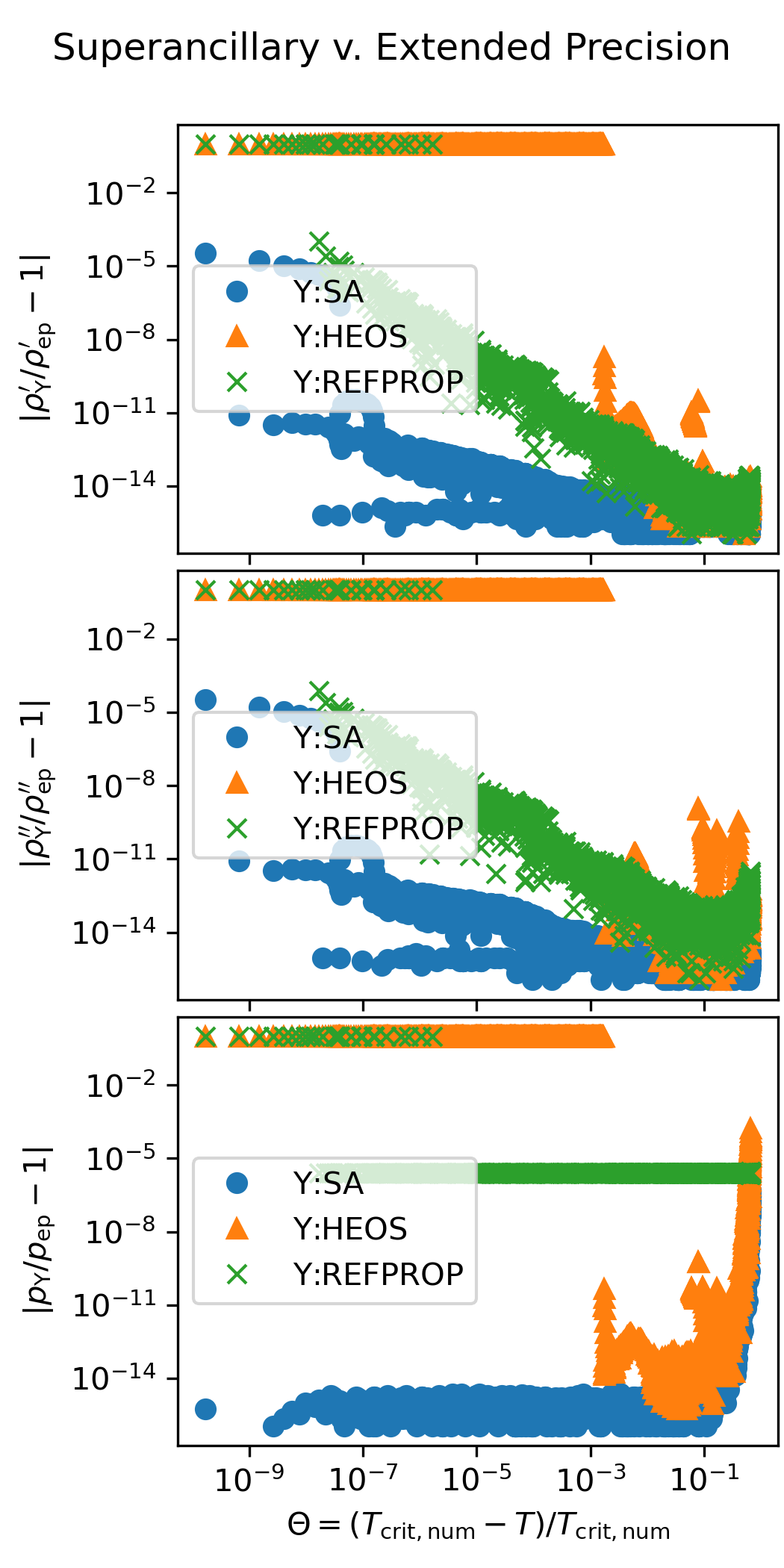

The following figure shows the accuracy of the superancillary functions relative to extended precision calculations carried out in C++ with the teqp library. The results of the iterative calculations with REFPROP and CoolProp are also shown.

Note

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.
