EthylBenzene#

References#

Equation of State#

Yong Zhou, Jiangtao Wu, and Eric W. Lemmon. Thermodynamic Properties of o-Xylene, m-Xylene, p-Xylene, and Ethylbenzene. J. Phys. Chem. Ref. Data, 41(2):023103–1 – 023103–26, 2012. doi:10.1063/1.3703506.

Thermal Conductivity#

S. K. Mylona, K. D. Antoniadis, M. J. Assael, M. L. Huber, and R. A. Perkins. Reference Correlations of the Thermal Conductivity of o-Xylene, m-Xylene, p-Xylene, and Ethylbenzene from the Triple Point to 700 K and Moderate Pressures. J. Phys. Chem. Ref. Data, 43:043104, 2014. doi:10.1063/1.4901166.

Surface Tension#

A. Mulero and I. Cachadiña. Recommended Correlations for the Surface Tension of Several Fluids Included in the REFPROP Program. J. Phys. Chem. Ref. Data, 43:023104–1:8, 2014. doi:10.1063/1.4878755.

Aliases#

ethylbenzene, ETHYLBENZENE, EBENZENE

Molecular Structure#

EthylBenzene — 3D conformer (interactive: click and drag to rotate)

Fluid Information#

Parameter, Value

General

Molar mass [kg/mol]

0.106165

CAS number

100-41-4

ASHRAE class

Formula

C8H10

Acentric factor

0.304

InChI

InChI=1S/C8H10/c1-2-8-6-4-3-5-7-8/h3-7H,2H2,1H3

InChIKey

YNQLUTRBYVCPMQ-UHFFFAOYSA-N

SMILES

CCc1ccccc1

ChemSpider ID

7219

Limits

Maximum temperature [K]

700.0

Maximum pressure [Pa]

60000000.0

Triple point

Triple point temperature [K]

178.20000000000002

Triple point pressure [Pa]

0.00400362117221462

Critical point

Critical point temperature [K]

617.1199997949194

Critical point density [kg/m3]

290.9999592432167

Critical point density [mol/m3]

2741.0159585853785

Critical point pressure [Pa]

3622442.128143988

REFPROP Validation Data#

Note

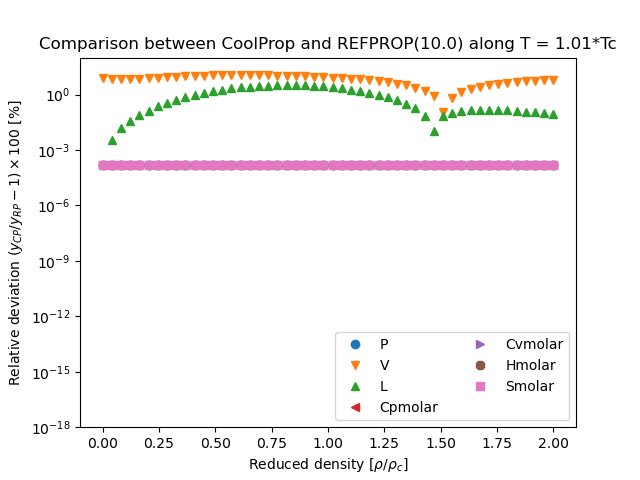

This figure compares the results generated from CoolProp and those generated from REFPROP. They are all results obtained in the form \(Y(T,\rho)\), where \(Y\) is the parameter of interest and which for all EOS is a direct evaluation of the EOS

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

../../_images/EthylBenzene.png

Consistency Plots#

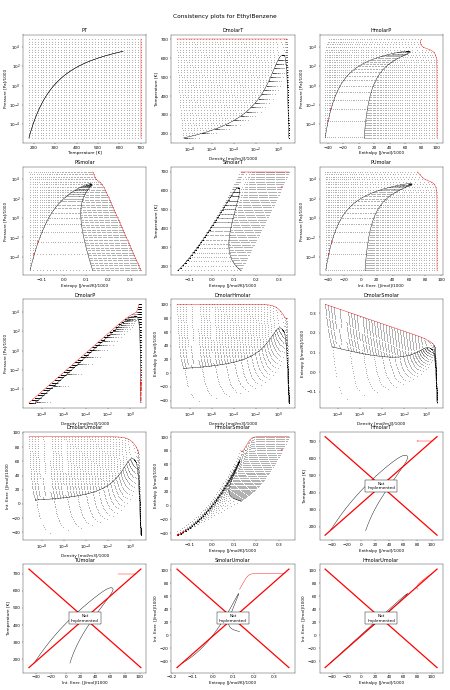

The following figure shows all the flash routines that are available for this fluid. A red + is a failure of the flash routine, a black dot is a success. Hopefully you will only see black dots. The red curve is the maximum temperature curve, and the blue curve is the melting line if one is available for the fluid.

In this figure, we start off with a state point given by T,P and then we calculate each of the other possible output pairs in turn, and then try to re-calculate T,P from the new input pair. If we don’t arrive back at the original T,P values, there is a problem in the flash routine in CoolProp. For more information on how these figures were generated, see CoolProp.Plots.ConsistencyPlots

Note

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

../../_images/EthylBenzene1.png

Flash consistency (HEOS): 25 inconsistent, 0 exceptions, 0 bad-phase across 3 input pair(s).

Download full failure list (CSV)

Failing state points (sample, up to 20 per pair/class)

Pair

Class

Region

P [Pa]

T [K]

In1

Val1

In2

Val2

Error

DmolarP

INCONSISTENT

1phase

0.148457

179.3

Dmolar

9113.56

P

0.148458

DmolarP

INCONSISTENT

1phase

0.00737189

179.3

Dmolar

9113.56

P

0.00737296

DmolarP

INCONSISTENT

1phase

0.0245012

179.3

Dmolar

9113.56

P

0.0245023

DmolarP

INCONSISTENT

1phase

0.0134395

179.3

Dmolar

9113.56

P

0.0134391

DmolarP

INCONSISTENT

1phase

0.0446676

179.3

Dmolar

9113.56

P

0.0446666

DmolarP

INCONSISTENT

1phase

0.0814324

179.3

Dmolar

9113.56

P

0.0814333

DmolarP

INCONSISTENT

1phase

0.0814324

192.651

Dmolar

8997.35

P

0.0814326

DmolarP

INCONSISTENT

1phase

0.148457

192.651

Dmolar

8997.35

P

0.148457

DmolarP

INCONSISTENT

1phase

0.270649

179.3

Dmolar

9113.56

P

0.270648

DmolarP

INCONSISTENT

1phase

0.270649

192.651

Dmolar

8997.35

P

0.270648

DmolarP

INCONSISTENT

1phase

0.493413

179.3

Dmolar

9113.56

P

0.493414

DmolarP

INCONSISTENT

1phase

0.493413

192.651

Dmolar

8997.35

P

0.493415

DmolarP

INCONSISTENT

1phase

0.493413

206.003

Dmolar

8883.4

P

0.493413

DmolarP

INCONSISTENT

1phase

0.899529

206.003

Dmolar

8883.4

P

0.899529

DmolarP

INCONSISTENT

1phase

2.98968

219.354

Dmolar

8771.21

P

2.98968

DmolarP

INCONSISTENT

1phase

9.9365

232.705

Dmolar

8660.35

P

9.9365

HmolarSmolar

INCONSISTENT

2phase

0.206871

202.196

Hmolar

-39329.9

Smolar

-131.099

SmolarT

INCONSISTENT

1phase

0.148457

192.651

Smolar

-138.82

T

192.651

SmolarT

INCONSISTENT

1phase

0.0814324

192.651

Smolar

-138.82

T

192.651

SmolarT

INCONSISTENT

1phase

0.00404366

619.892

Smolar

315.892

T

619.892

SmolarT

INCONSISTENT

1phase

1.63991

179.3

Smolar

-150.18

T

179.3

SmolarT

INCONSISTENT

1phase

0.493413

179.3

Smolar

-150.18

T

179.3

SmolarT

INCONSISTENT

1phase

0.899529

179.3

Smolar

-150.18

T

179.3

SmolarT

INCONSISTENT

1phase

0.270649

179.3

Smolar

-150.18

T

179.3

SmolarT

INCONSISTENT

1phase

0.148457

179.3

Smolar

-150.18

T

179.3

Superancillary Plots#

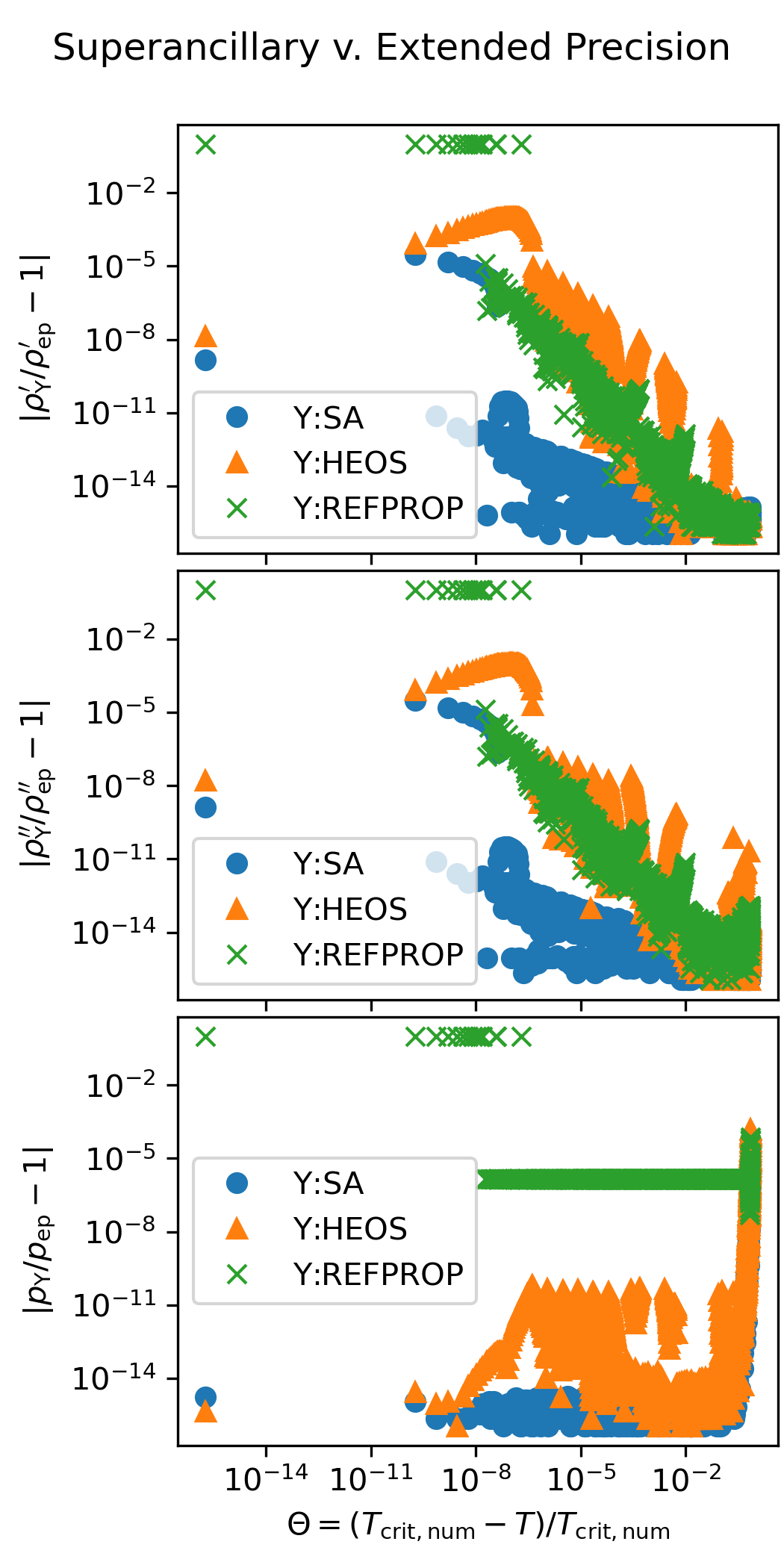

The following figure shows the accuracy of the superancillary functions relative to extended precision calculations carried out in C++ with the teqp library. The results of the iterative calculations with REFPROP and CoolProp are also shown.

Note

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

../../_images/EthylBenzene2.png
