R1224YDZ

References

Equation of State

Ryo Akasaka and Eric W. Lemmon. A Helmholtz Energy Equation of State for cis-1-Chloro-2,3,3,3-tetrafluoro-1-propene [R-1224yd(Z)]. International Journal of Thermophysics, 2023. doi:10.1007/s10765-023-03266-3.

Ideal gas specific heat

Ryo Akasaka and Eric W. Lemmon. A Helmholtz Energy Equation of State for cis-1-Chloro-2,3,3,3-tetrafluoro-1-propene [R-1224yd(Z)]. International Journal of Thermophysics, 2023. doi:10.1007/s10765-023-03266-3.

Molecular Structure

R1224YDZ — 3D conformer (interactive: click and drag to rotate)

Fluid Information

Parameter, Value
General
Molar mass [kg/mol]	0.14848670000000003
CAS number	111512-60-8
ASHRAE class	?
Formula	CF3CF=CHCl (cis)
Acentric factor	0.325
InChI	InChI=1S/C3HClF4/c4-1-2(5)3(6,7)8/h1H/b2-1-
InChIKey	GDPWRLVSJWKGPJ-UPHRSURJSA-N
SMILES	?
ChemSpider ID	-1
Limits
Maximum temperature [K]	473.15
Maximum pressure [Pa]	35200000.0
Triple point
Triple point temperature [K]	157.8
Triple point pressure [Pa]	2.536605496114026
Critical point
Critical point temperature [K]	428.6900000000627
Critical point density [kg/m3]	539.3036944019578
Critical point density [mol/m3]	3632.000000013185
Critical point pressure [Pa]	3334038.4705547076

REFPROP Validation Data

Note

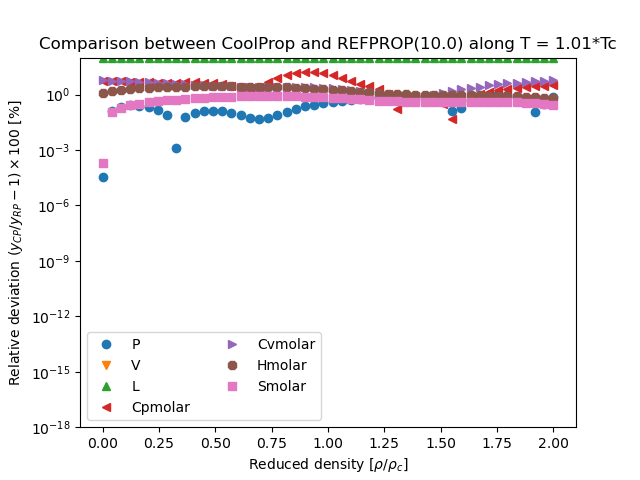

This figure compares the results generated from CoolProp and those generated from REFPROP. They are all results obtained in the form \(Y(T,\rho)\), where \(Y\) is the parameter of interest and which for all EOS is a direct evaluation of the EOS

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

Consistency Plots

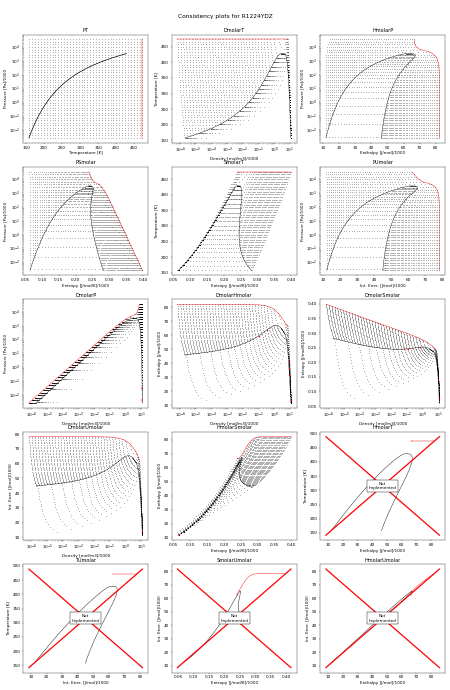

The following figure shows all the flash routines that are available for this fluid. A red + is a failure of the flash routine, a black dot is a success. Hopefully you will only see black dots. The red curve is the maximum temperature curve, and the blue curve is the melting line if one is available for the fluid.

In this figure, we start off with a state point given by T,P and then we calculate each of the other possible output pairs in turn, and then try to re-calculate T,P from the new input pair. If we don’t arrive back at the original T,P values, there is a problem in the flash routine in CoolProp. For more information on how these figures were generated, see CoolProp.Plots.ConsistencyPlots

Note

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

Flash consistency (HEOS): 3 inconsistent, 0 exceptions, 0 bad-phase across 2 input pair(s).

Download full failure list (CSV)

Failing state points (sample, up to 20 per pair/class)

Pair	Class	Region	P [Pa]	T [K]	In1	Val1	In2	Val2	Error
DmolarP	INCONSISTENT	1phase	3.9048	158.9	Dmolar	11472.3	P	3.9049
DmolarP	INCONSISTENT	1phase	32.1161	175.015	Dmolar	11211.2	P	32.1165
HmolarSmolar	INCONSISTENT	2phase	2.98998	158.8	Hmolar	12082.1	Smolar	65.289

Superancillary Plots

The following figure shows the accuracy of the superancillary functions relative to extended precision calculations carried out in C++ with the teqp library. The results of the iterative calculations with REFPROP and CoolProp are also shown.

Note

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.
