R227EA¶

References¶

Equation of State¶

Eric W. Lemmon and Roland Span. Thermodynamic Properties of R-227ea, R-365mfc, R-115, and R13I1. J. Chem. Eng. Data, 2016, submitted. doi:10.1021/acs.jced.5b00684.

Thermal Conductivity¶

Marcia L. Huber, Arno Laesecke, and Richard A. Perkins. Model for the Viscosity and Thermal Conductivity of Refrigerants, Including a New Correlation for the Viscosity of R134a. Ind. Eng. Chem. Res., 42:3163–3178, 2003. doi:10.1021/ie0300880.

Viscosity¶

Marcia L. Huber, Arno Laesecke, and Richard A. Perkins. Model for the Viscosity and Thermal Conductivity of Refrigerants, Including a New Correlation for the Viscosity of R134a. Ind. Eng. Chem. Res., 42:3163–3178, 2003. doi:10.1021/ie0300880.

Surface Tension¶

A. Mulero, I. Cachadiña, and M. I. Parra. Recommended Correlations for the Surface Tension of Common Fluids. J. Phys. Chem. Ref. Data, 41(4):043105–1:13, 2012. doi:10.1063/1.4768782.

Aliases¶

R227ea

Fluid Information¶

Parameter, Value
General
Molar mass [kg/mol]	0.17002886
CAS number	431-89-0
ASHRAE class	A1
Formula	C₃F₇H
Acentric factor	0.3576412419532815
InChI	InChI=1S/C3HF7/c4-1(2(5,6)7)3(8,9)10/h1H
InChIKey	YFMFNYKEUDLDTL-UHFFFAOYSA-N
SMILES	C(C(F)(F)F)(C(F)(F)F)F
ChemSpider ID	61257
Limits
Maximum temperature [K]	475.0
Maximum pressure [Pa]	60000000.0
Triple point
Triple point temperature [K]	146.35
Triple point pressure [Pa]	7.331559169108263
Critical point
Critical point temperature [K]	374.9001034452502
Critical point density [kg/m3]	594.2469253739447
Critical point density [mol/m3]	3494.976825545644
Critical point pressure [Pa]	2925248.665680179

REFPROP Validation Data¶

Note

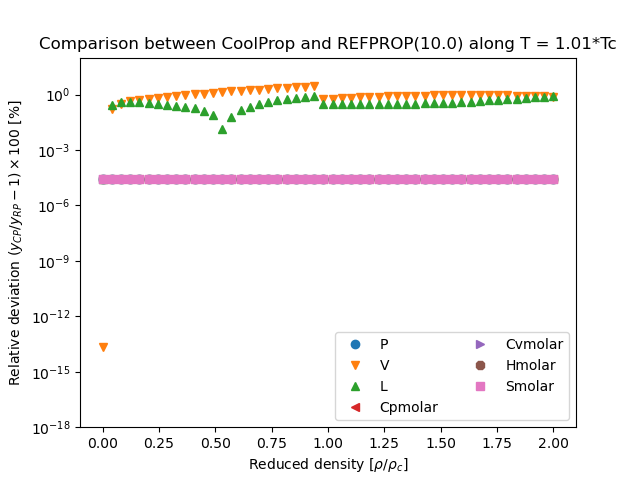

This figure compares the results generated from CoolProp and those generated from REFPROP. They are all results obtained in the form \(Y(T,\rho)\), where \(Y\) is the parameter of interest and which for all EOS is a direct evaluation of the EOS

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

Consistency Plots¶

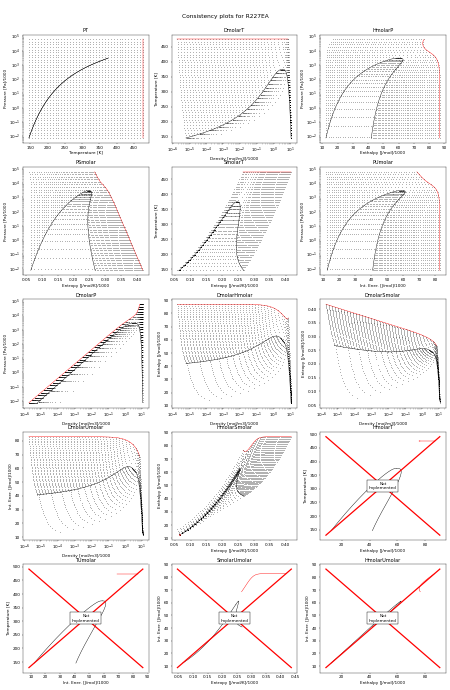

The following figure shows all the flash routines that are available for this fluid. A red + is a failure of the flash routine, a black dot is a success. Hopefully you will only see black dots. The red curve is the maximum temperature curve, and the blue curve is the melting line if one is available for the fluid.

In this figure, we start off with a state point given by T,P and then we calculate each of the other possible output pairs in turn, and then try to re-calculate T,P from the new input pair. If we don’t arrive back at the original T,P values, there is a problem in the flash routine in CoolProp. For more information on how these figures were generated, see CoolProp.Plots.ConsistencyPlots

Note

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

Superancillary Plots¶

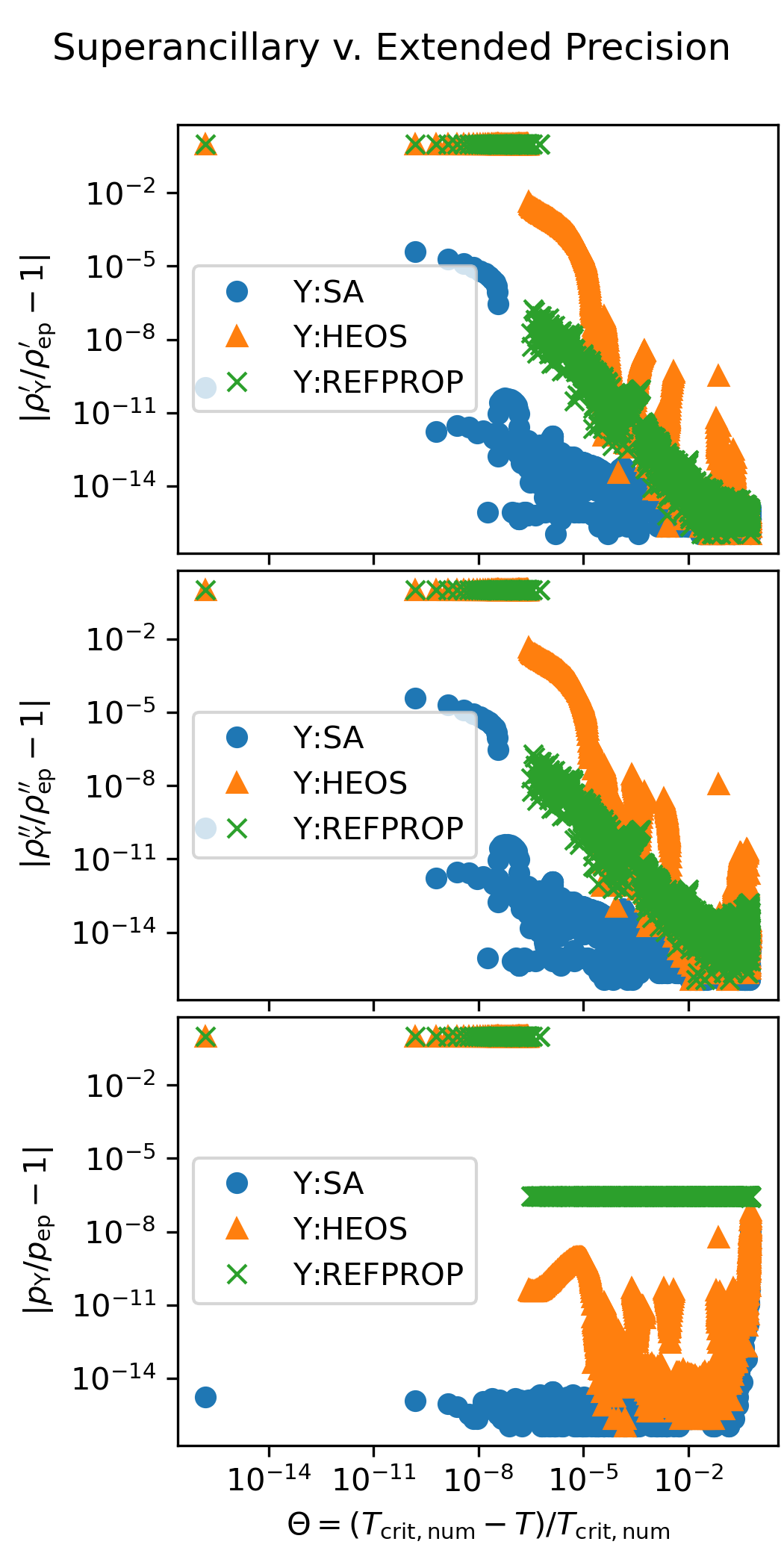

The following figure shows the accuracy of the superancillary functions relative to extended precision calculations carried out in C++ with the teqp library. The results of the iterative calculations with REFPROP and CoolProp are also shown.

Note

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.
