R115

References

Equation of State

Eric W. Lemmon and Roland Span. Thermodynamic Properties of R-227ea, R-365mfc, R-115, and R13I1. J. Chem. Eng. Data, 2016, submitted. doi:10.1021/acs.jced.5b00684.

Fluid Information

Parameter, Value

General

Molar mass [kg/mol]

0.154466416

CAS number

76-15-3

ASHRAE class

UNKNOWN

Formula

C2F5Cl

Acentric factor

0.2484349930663459

InChI

InChI=1S/C2ClF5/c3-1(4,5)2(6,7)8

InChIKey

RFCAUADVODFSLZ-UHFFFAOYSA-N

SMILES

C(C(F)(F)Cl)(F)(F)F

ChemSpider ID

6190

Limits

Maximum temperature [K]

550.0

Maximum pressure [Pa]

60000000.0

Triple point

Triple point temperature [K]

173.57

Triple point pressure [Pa]

2178.2318283617788

Critical point

Critical point temperature [K]

353.1019775386571

Critical point density [kg/m3]

614.7714643587944

Critical point density [mol/m3]

3979.9684635577646

Critical point pressure [Pa]

3129170.8491095616

Reducing point

Reducing point temperature [K]

353.1

Reducing point density [mol/m3]

3980.0

REFPROP Validation Data

Note

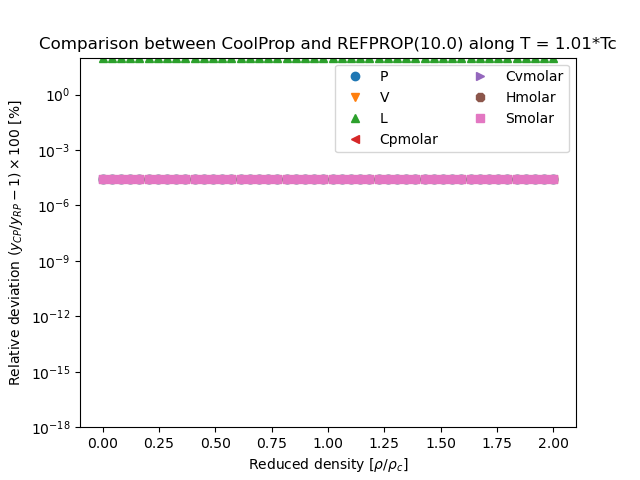

This figure compares the results generated from CoolProp and those generated from REFPROP. They are all results obtained in the form \(Y(T,\rho)\), where \(Y\) is the parameter of interest and which for all EOS is a direct evaluation of the EOS

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

../../_images/R115.png

Consistency Plots

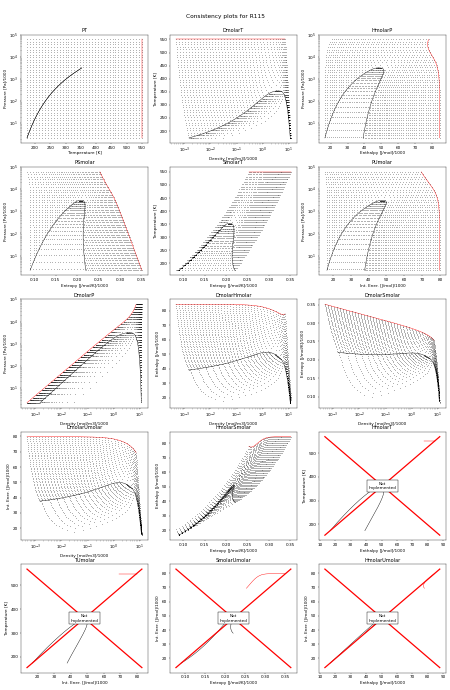

The following figure shows all the flash routines that are available for this fluid. A red + is a failure of the flash routine, a black dot is a success. Hopefully you will only see black dots. The red curve is the maximum temperature curve, and the blue curve is the melting line if one is available for the fluid.

In this figure, we start off with a state point given by T,P and then we calculate each of the other possible output pairs in turn, and then try to re-calculate T,P from the new input pair. If we don’t arrive back at the original T,P values, there is a problem in the flash routine in CoolProp. For more information on how these figures were generated, see CoolProp.Plots.ConsistencyPlots

Note

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

../../_images/R1151.png

Superancillary Plots

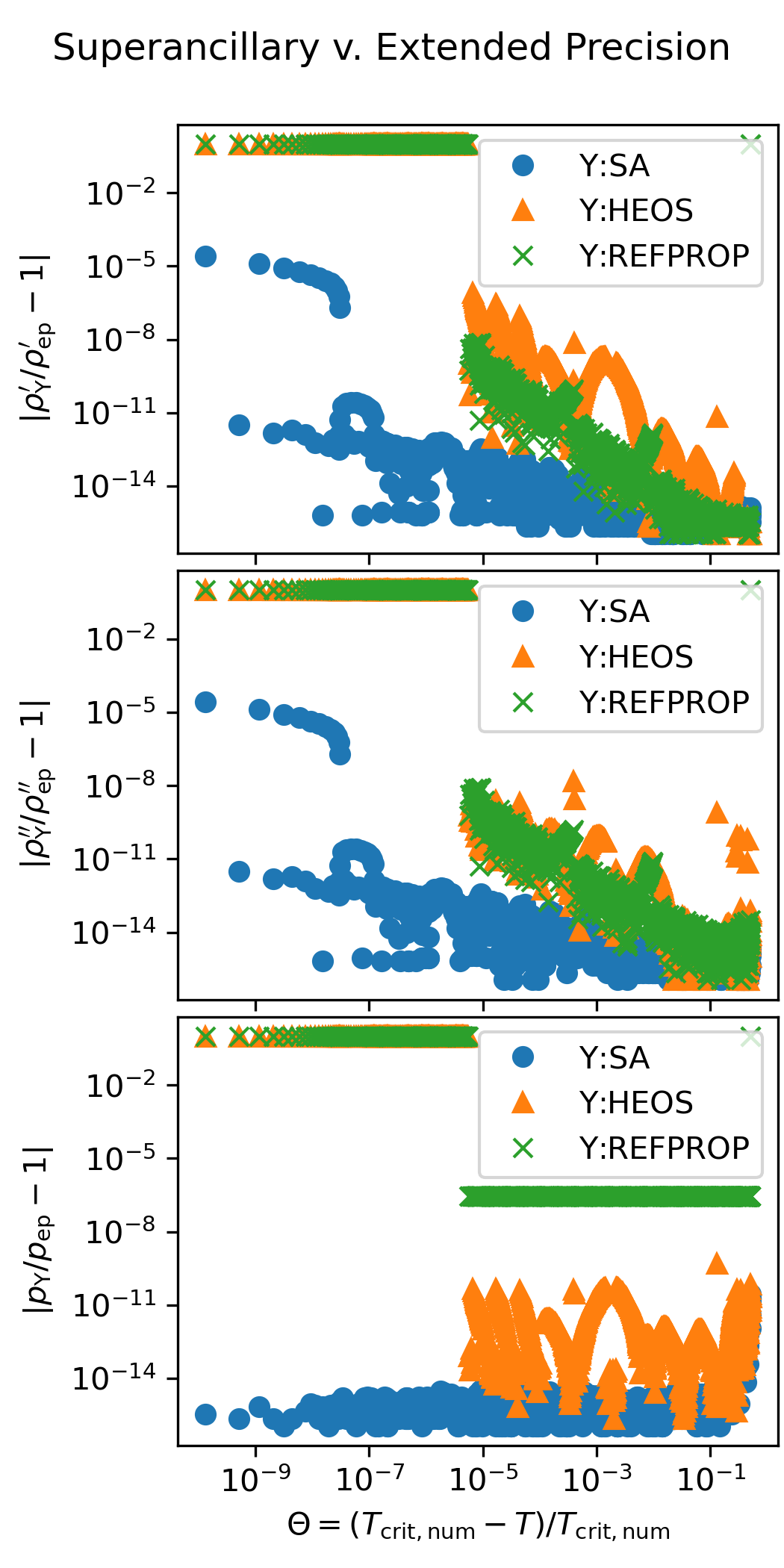

The following figure shows the accuracy of the superancillary functions relative to extended precision calculations carried out in C++ with the teqp library. The results of the iterative calculations with REFPROP and CoolProp are also shown.

Note

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

../../_images/R1152.png
