SES36#
References#
Equation of State#
Monika Thol, Eric W. Lemmon, and Roland Span. Equation of State for a Refrigerant Mixture of R365mfc (1,1,1,3,3-Pentafluorobutane) and Galden HT 55 (Perfluoropolyether). Unpublished, 2012.Fluid Information#
Parameter, Value |
|
|---|---|
General |
|
Molar mass [kg/mol] |
0.18485 |
CAS number |
SES36.ppf |
ASHRAE class |
|
Formula |
N/A |
Acentric factor |
0.352 |
InChI |
N/A |
InChIKey |
N/A |
SMILES |
N/A |
ChemSpider ID |
-1 |
Limits |
|
Maximum temperature [K] |
725.0 |
Maximum pressure [Pa] |
500000000.0 |
Triple point |
|
Triple point temperature [K] |
200.0 |
Triple point pressure [Pa] |
573.2898712226755 |
Critical point |
|
Critical point temperature [K] |
450.7000000000001 |
Critical point density [kg/m3] |
517.5799999999999 |
Critical point density [mol/m3] |
2800.0 |
Critical point pressure [Pa] |
2849000.0 |
REFPROP Validation Data#
Note

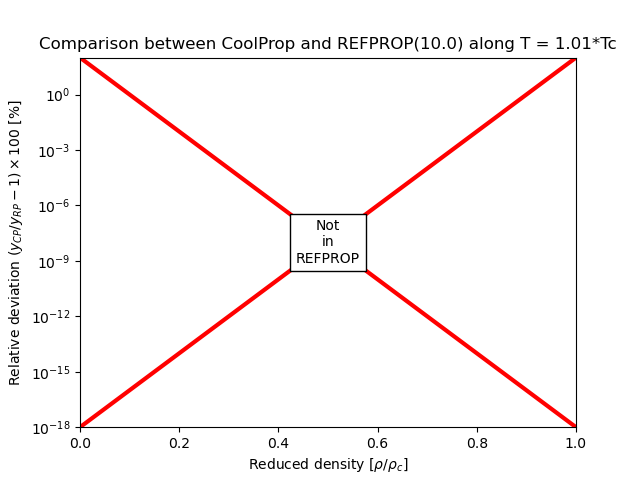

This figure compares the results generated from CoolProp and those generated from REFPROP. They are all results obtained in the form \(Y(T,\rho)\), where \(Y\) is the parameter of interest and which for all EOS is a direct evaluation of the EOS
You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.
Consistency Plots#
The following figure shows all the flash routines that are available for this fluid. A red + is a failure of the flash routine, a black dot is a success. Hopefully you will only see black dots. The red curve is the maximum temperature curve, and the blue curve is the melting line if one is available for the fluid.

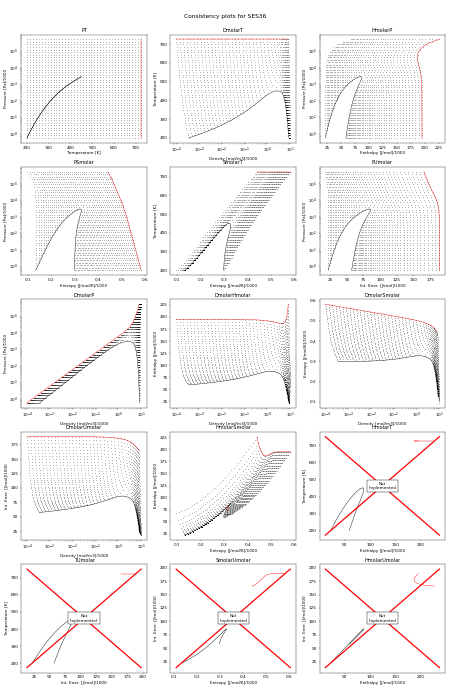

In this figure, we start off with a state point given by T,P and then we calculate each of the other possible output pairs in turn, and then try to re-calculate T,P from the new input pair. If we don’t arrive back at the original T,P values, there is a problem in the flash routine in CoolProp. For more information on how these figures were generated, see CoolProp.Plots.ConsistencyPlots
Note
You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.
Flash consistency (HEOS): 2 inconsistent, 57 exceptions, 0 bad-phase across 4 input pair(s).
Download full failure list (CSV)
Failing state points (sample, up to 20 per pair/class)
Pair |
Class |
Region |
P [Pa] |
T [K] |
In1 |
Val1 |
In2 |
Val2 |
Error |
|---|---|---|---|---|---|---|---|---|---|
DmolarHmolar |
EXCEPTION |
1phase |
579.023 |
201.1 |
Dmolar |
0.346698 |
Hmolar |
59045.4 |
Brent’s method reached maximum number of steps of 20 |
DmolarSmolar |
EXCEPTION |
1phase |
579.023 |
201.1 |
Dmolar |
0.346698 |
Smolar |
298.646 |
Brent’s method reached maximum number of steps of 20 |
DmolarSmolar |
EXCEPTION |
1phase |
224028 |
335.433 |
Dmolar |
88.0428 |
Smolar |
310.307 |
solver_rho_Tp was unable to find a solution for T= 449.658, p=2.79832e+06, with guess value 3288 with error: The molar density of -160812.858831 mol/m3 is below the minimum of 0.000000 mol/m3 |
DmolarSmolar |
EXCEPTION |
1phase |
451572 |
362.3 |
Dmolar |
174.329 |
Smolar |
315.606 |
solver_rho_Tp was unable to find a solution for T= 449.693, p=2.80003e+06, with guess value 3276.84 with error: The molar density of -6105.504912 mol/m3 is below the minimum of 0.000000 mol/m3 |
DmolarSmolar |
EXCEPTION |
1phase |
641119 |
375.733 |
Dmolar |
250.612 |
Smolar |
318.016 |
solver_rho_Tp was unable to find a solution for T= 449.769, p=2.80373e+06, with guess value 3251.65 with error: Householder4 reached maximum number of iterations |
DmolarUmolar |
EXCEPTION |
1phase |
579.023 |
201.1 |
Dmolar |
0.346698 |
Umolar |
57375.3 |
Brent’s method reached maximum number of steps of 20 |
HmolarSmolar |
INCONSISTENT |
1phase |
224028 |
335.433 |
Hmolar |
74966.1 |
Smolar |
310.307 |
|
HmolarSmolar |
INCONSISTENT |
1phase |
641119 |
375.733 |
Hmolar |
80412.9 |
Smolar |
318.016 |
