n-Decane

References

Equation of State

E.W. Lemmon and R. Span. Short Fundamental Equations of State for 20 Industrial Fluids. J. Chem. Eng. Data, 51:785–850, 2006. doi:10.1021/je050186n.

Thermal Conductivity

M.L. Huber and R.A. Perkins. Thermal conductivity correlations for minor constituent fluids in natural gas: n-octane, n-nonane and n-decane. Fluid Phase Equilib., 227:47–55, 2005. doi:10.1016/j.fluid.2004.10.031.

Viscosity

Marcia L. Huber, Arno Laesecke, and Hong Wei Xiang. Viscosity correlations for minor constituent fluids in natural gas: n-octane, n-nonane and n-decane. Fluid Phase Equilib., 224:263–270, 2004. doi:10.1016/j.fluid.2004.07.012.

Surface Tension

A. Mulero, I. Cachadiña, and M. I. Parra. Recommended Correlations for the Surface Tension of Common Fluids. J. Phys. Chem. Ref. Data, 41(4):043105–1:13, 2012. doi:10.1063/1.4768782.

Aliases

Decane, decane, DECANE, N-DECANE, NC10H22, n-C10H22

Molecular Structure

n-Decane — 3D conformer (interactive: click and drag to rotate)

Fluid Information

Parameter, Value
General
Molar mass [kg/mol]	0.14228168
CAS number	124-18-5
ASHRAE class	UNKNOWN
Formula	C10H22
Acentric factor	0.4884
InChI	InChI=1S/C10H22/c1-3-5-7-9-10-8-6-4-2/h3-10H2,1-2H3
InChIKey	DIOQZVSQGTUSAI-UHFFFAOYSA-N
SMILES	CCCCCCCCCC
ChemSpider ID	14840
Limits
Maximum temperature [K]	675.0
Maximum pressure [Pa]	800000000.0
Triple point
Triple point temperature [K]	243.5
Triple point pressure [Pa]	1.4041839024219944
Critical point
Critical point temperature [K]	617.6988452458754
Critical point density [kg/m3]	233.34269334892713
Critical point density [mol/m3]	1640.0051879407604
Critical point pressure [Pa]	2101336.691813891
Reducing point
Reducing point temperature [K]	617.7
Reducing point density [mol/m3]	1640.0

REFPROP Validation Data

Note

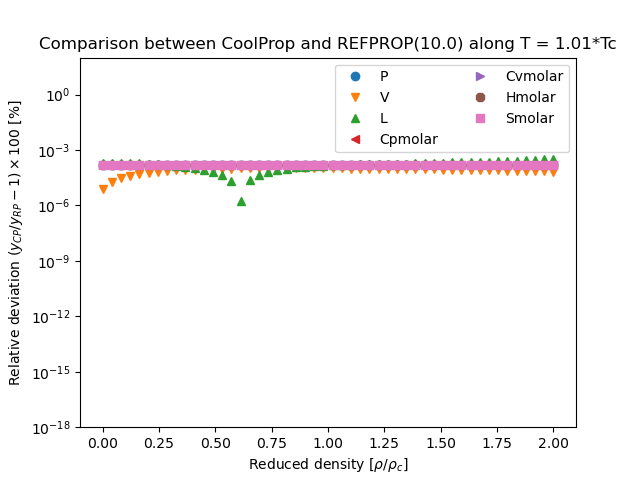

This figure compares the results generated from CoolProp and those generated from REFPROP. They are all results obtained in the form \(Y(T,\rho)\), where \(Y\) is the parameter of interest and which for all EOS is a direct evaluation of the EOS

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

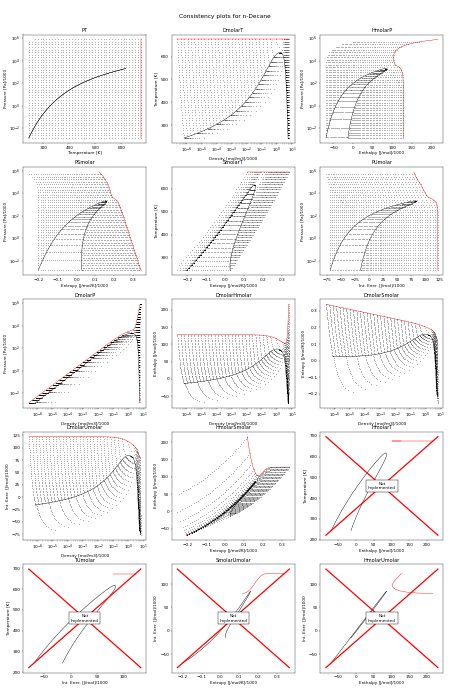

Consistency Plots

The following figure shows all the flash routines that are available for this fluid. A red + is a failure of the flash routine, a black dot is a success. Hopefully you will only see black dots. The red curve is the maximum temperature curve, and the blue curve is the melting line if one is available for the fluid.

In this figure, we start off with a state point given by T,P and then we calculate each of the other possible output pairs in turn, and then try to re-calculate T,P from the new input pair. If we don’t arrive back at the original T,P values, there is a problem in the flash routine in CoolProp. For more information on how these figures were generated, see CoolProp.Plots.ConsistencyPlots

Note

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

Flash consistency (HEOS): 1 inconsistent, 136 exceptions, 0 bad-phase across 11 input pair(s).

Download full failure list (CSV)

Failing state points (sample, up to 20 per pair/class)

Pair	Class	Region	P [Pa]	T [K]	In1	Val1	In2	Val2	Error
DmolarHmolar	EXCEPTION	1phase	8e+08	244.6	P	8e+08	T	244.6	Inputs in Brent [5345.743060,5946.207968] do not bracket the root. Function values are [-1.015439,-0.734922]
DmolarHmolar	EXCEPTION	1phase	8e+08	255.636	P	8e+08	T	255.636	Inputs in Brent [5286.008051,5946.207968] do not bracket the root. Function values are [-1.014088,-0.706844]
DmolarP	EXCEPTION	1phase	8e+08	244.6	P	8e+08	T	244.6	Inputs in Brent [5345.743060,5946.207968] do not bracket the root. Function values are [-1.015439,-0.734922]
DmolarP	EXCEPTION	1phase	8e+08	255.636	P	8e+08	T	255.636	Inputs in Brent [5286.008051,5946.207968] do not bracket the root. Function values are [-1.014088,-0.706844]
DmolarP	INCONSISTENT	1phase	2.3776	244.6	Dmolar	5400.27	P	2.3776
DmolarSmolar	EXCEPTION	1phase	8e+08	244.6	P	8e+08	T	244.6	Inputs in Brent [5345.743060,5946.207968] do not bracket the root. Function values are [-1.015439,-0.734922]
DmolarSmolar	EXCEPTION	1phase	8e+08	255.636	P	8e+08	T	255.636	Inputs in Brent [5286.008051,5946.207968] do not bracket the root. Function values are [-1.014088,-0.706844]
DmolarT	EXCEPTION	1phase	8e+08	244.6	P	8e+08	T	244.6	Inputs in Brent [5345.743060,5946.207968] do not bracket the root. Function values are [-1.015439,-0.734922]
DmolarT	EXCEPTION	1phase	8e+08	255.636	P	8e+08	T	255.636	Inputs in Brent [5286.008051,5946.207968] do not bracket the root. Function values are [-1.014088,-0.706844]
DmolarUmolar	EXCEPTION	1phase	8e+08	244.6	P	8e+08	T	244.6	Inputs in Brent [5345.743060,5946.207968] do not bracket the root. Function values are [-1.015439,-0.734922]
DmolarUmolar	EXCEPTION	1phase	8e+08	255.636	P	8e+08	T	255.636	Inputs in Brent [5286.008051,5946.207968] do not bracket the root. Function values are [-1.014088,-0.706844]
HmolarP	EXCEPTION	1phase	8e+08	244.6	P	8e+08	T	244.6	Inputs in Brent [5345.743060,5946.207968] do not bracket the root. Function values are [-1.015439,-0.734922]
HmolarP	EXCEPTION	1phase	8e+08	255.636	P	8e+08	T	255.636	Inputs in Brent [5286.008051,5946.207968] do not bracket the root. Function values are [-1.014088,-0.706844]
HmolarP	EXCEPTION	1phase	8e+08	266.672	Hmolar	50681.3	P	8e+08	unable to solve 1phase PY flash with Tmin=243.499, Tmax=1012.5 due to error: Inputs in Brent [5351.592471,5946.207968] do not bracket the root. Function values are [-1.015618,-0.737761]
HmolarSmolar	EXCEPTION	1phase	8e+08	244.6	P	8e+08	T	244.6	Inputs in Brent [5345.743060,5946.207968] do not bracket the root. Function values are [-1.015439,-0.734922]
HmolarSmolar	EXCEPTION	1phase	8e+08	255.636	P	8e+08	T	255.636	Inputs in Brent [5286.008051,5946.207968] do not bracket the root. Function values are [-1.014088,-0.706844]
PSmolar	EXCEPTION	1phase	8e+08	244.6	P	8e+08	T	244.6	Inputs in Brent [5345.743060,5946.207968] do not bracket the root. Function values are [-1.015439,-0.734922]
PSmolar	EXCEPTION	1phase	8e+08	255.636	P	8e+08	T	255.636	Inputs in Brent [5286.008051,5946.207968] do not bracket the root. Function values are [-1.014088,-0.706844]
PSmolar	EXCEPTION	1phase	8e+08	266.672	P	8e+08	Smolar	-246.669	unable to solve 1phase PY flash with Tmin=243.499, Tmax=1012.5 due to error: Inputs in Brent [5351.592471,5946.207968] do not bracket the root. Function values are [-1.015618,-0.737761]
PT	EXCEPTION	1phase	8e+08	244.6	P	8e+08	T	244.6	Inputs in Brent [5345.743060,5946.207968] do not bracket the root. Function values are [-1.015439,-0.734922]
PT	EXCEPTION	1phase	8e+08	255.636	P	8e+08	T	255.636	Inputs in Brent [5286.008051,5946.207968] do not bracket the root. Function values are [-1.014088,-0.706844]
PUmolar	EXCEPTION	1phase	8e+08	244.6	P	8e+08	T	244.6	Inputs in Brent [5345.743060,5946.207968] do not bracket the root. Function values are [-1.015439,-0.734922]
PUmolar	EXCEPTION	1phase	8e+08	255.636	P	8e+08	T	255.636	Inputs in Brent [5286.008051,5946.207968] do not bracket the root. Function values are [-1.014088,-0.706844]
PUmolar	EXCEPTION	1phase	8e+08	266.672	P	8e+08	Umolar	-71541.2	unable to solve 1phase PY flash with Tmin=243.499, Tmax=1012.5 due to error: Inputs in Brent [5351.592471,5946.207968] do not bracket the root. Function values are [-1.015618,-0.737761]
SmolarT	EXCEPTION	1phase	8e+08	244.6	P	8e+08	T	244.6	Inputs in Brent [5345.743060,5946.207968] do not bracket the root. Function values are [-1.015439,-0.734922]
SmolarT	EXCEPTION	1phase	8e+08	255.636	P	8e+08	T	255.636	Inputs in Brent [5286.008051,5946.207968] do not bracket the root. Function values are [-1.014088,-0.706844]

Superancillary Plots

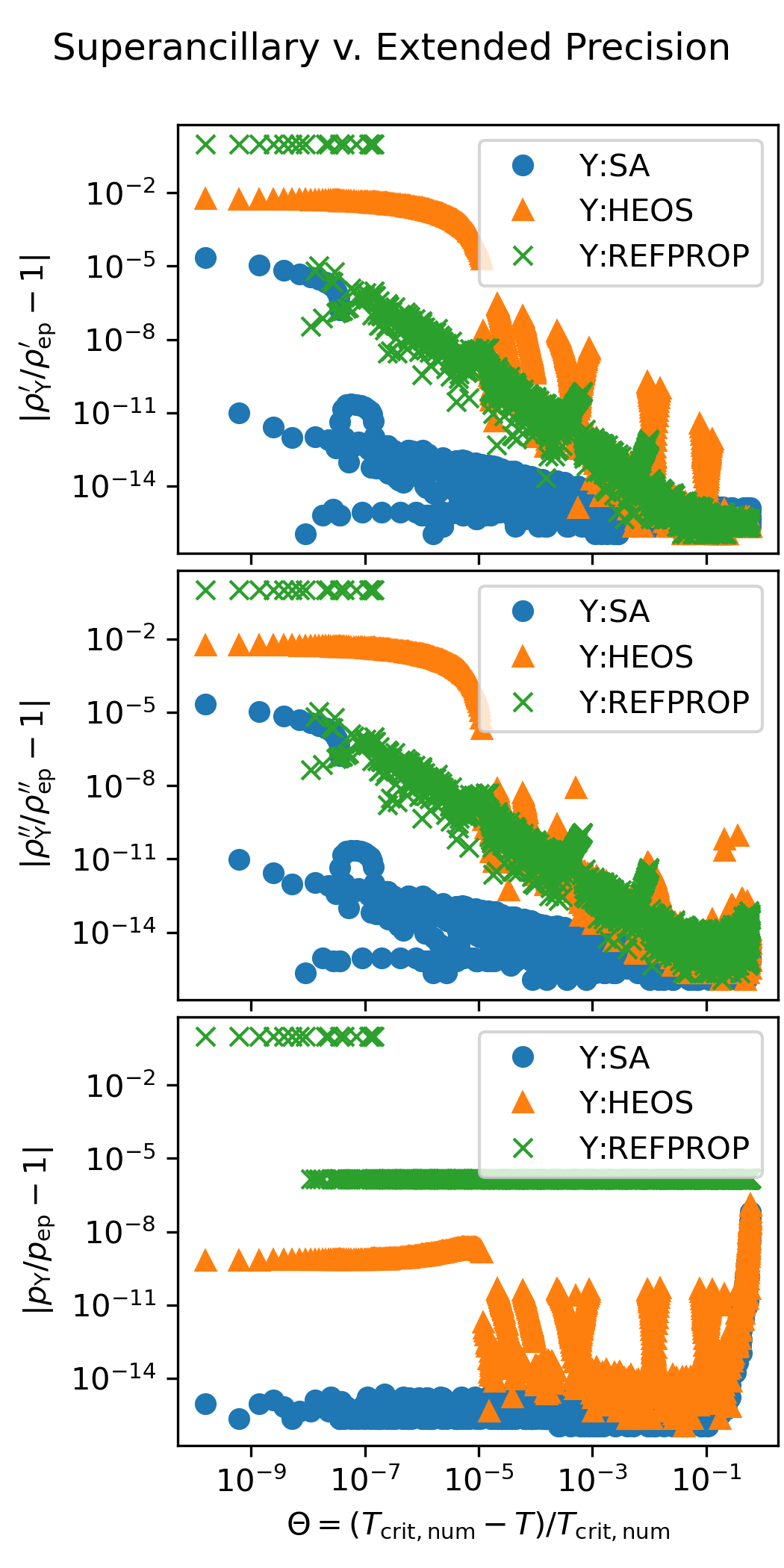

The following figure shows the accuracy of the superancillary functions relative to extended precision calculations carried out in C++ with the teqp library. The results of the iterative calculations with REFPROP and CoolProp are also shown.

Note

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.
