R410A#
References#
Equation of State#
E.W. Lemmon. Pseudo-Pure Fluid Equations of State for the Refrigerant Blends R-410A, R-404A, R-507A, and R-407C. Int. J. Thermophys., 24(4):991–1006, 2003. doi:10.1023/A:1025048800563.Thermal Conductivity#
V.Z. Geller, B.Z. Nemzer, and U.V. Cheremnykh. Thermal Conductivity of the Refrigerant mixtures R404A, R407C, R410A, and R507A. Int. J. Thermophys., 22:1034–1043, 2001. doi:10.1023/A:1010691504352.Viscosity#
V. Geller. Viscosity of Mixed Refrigerants R404A, R407C, R410A, and R507A. In 2000 International Refrigeration Conferences at Purdue University. 2000.Surface Tension#
M. Okada, T. Shibata, Y. Sato, and Y. Higashi. Surface Tension of HFC Refrigerant Mixtures. Int. J. Thermophys., 20(1):119–127, 1999. doi:10.1023/A:1021482231102.Aliases#
R410a
Fluid Information#
Parameter, Value |
|
|---|---|
General |
|
Molar mass [kg/mol] |
0.07258540000000001 |
CAS number |
R410A.PPF |
ASHRAE class |
A1 |
Formula |
N/A |
Acentric factor |
0.296 |
InChI |
N/A |
InChIKey |
N/A |
SMILES |
N/A |
ChemSpider ID |
-1 |
Limits |
|
Maximum temperature [K] |
500.0 |
Maximum pressure [Pa] |
50000000.0 |
Triple point |
|
Triple point temperature [K] |
200.0 |
Triple point pressure [Pa] |
29160.33537476026 |
Critical point |
|
Critical point temperature [K] |
344.494 |
Critical point density [kg/m3] |
459.0300696 |
Critical point density [mol/m3] |
6323.999999999999 |
Critical point pressure [Pa] |
4901200.0 |
REFPROP Validation Data#
Note

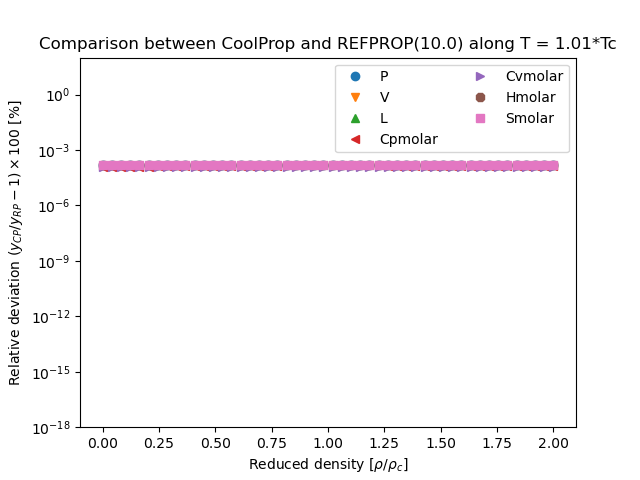

This figure compares the results generated from CoolProp and those generated from REFPROP. They are all results obtained in the form \(Y(T,\rho)\), where \(Y\) is the parameter of interest and which for all EOS is a direct evaluation of the EOS
You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.
Consistency Plots#

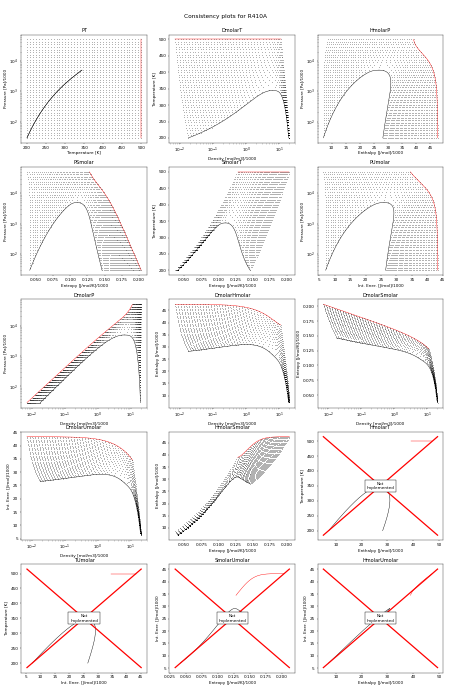

The following figure shows all the flash routines that are available for this fluid. A red + is a failure of the flash routine, a black dot is a success. Hopefully you will only see black dots. The red curve is the maximum temperature curve, and the blue curve is the melting line if one is available for the fluid.
In this figure, we start off with a state point given by T,P and then we calculate each of the other possible output pairs in turn, and then try to re-calculate T,P from the new input pair. If we don’t arrive back at the original T,P values, there is a problem in the flash routine in CoolProp. For more information on how these figures were generated, see CoolProp.Plots.ConsistencyPlots
Note
You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.
Flash consistency (HEOS): 0 inconsistent, 35 exceptions, 0 bad-phase across 11 input pair(s).
Download full failure list (CSV)
Failing state points (sample, up to 20 per pair/class)
Pair |
Class |
Region |
P [Pa] |
T [K] |
In1 |
Val1 |
In2 |
Val2 |
Error |
|---|---|---|---|---|---|---|---|---|---|
DmolarHmolar |
EXCEPTION |
1phase |
425157 |
254.749 |
P |
425157 |
T |
254.749 |
Two-phase inputs not supported for pseudo-pure for now |
DmolarHmolar |
EXCEPTION |
1phase |
514477 |
201.1 |
Dmolar |
19476.6 |
Hmolar |
7161.54 |
Secant reached maximum number of iterations |
DmolarHmolar |
EXCEPTION |
1phase |
622563 |
201.1 |
Dmolar |
19479.3 |
Hmolar |
7164.73 |
p is not a valid number |
DmolarP |
EXCEPTION |
1phase |
425157 |
254.749 |
P |
425157 |
T |
254.749 |
Two-phase inputs not supported for pseudo-pure for now |
DmolarSmolar |
EXCEPTION |
1phase |
425157 |
254.749 |
P |
425157 |
T |
254.749 |
Two-phase inputs not supported for pseudo-pure for now |
DmolarSmolar |
EXCEPTION |
1phase |
514477 |
201.1 |
Dmolar |
19476.6 |
Smolar |
41.4795 |
Secant reached maximum number of iterations |
DmolarSmolar |
EXCEPTION |
1phase |
622563 |
201.1 |
Dmolar |
19479.3 |
Smolar |
41.4678 |
p is not a valid number |
DmolarT |
EXCEPTION |
1phase |
425157 |
254.749 |
P |
425157 |
T |
254.749 |
Two-phase inputs not supported for pseudo-pure for now |
DmolarUmolar |
EXCEPTION |
1phase |
425157 |
254.749 |
P |
425157 |
T |
254.749 |
Two-phase inputs not supported for pseudo-pure for now |
DmolarUmolar |
EXCEPTION |
1phase |
514477 |
201.1 |
Dmolar |
19476.6 |
Umolar |
7135.12 |
Secant reached maximum number of iterations |
DmolarUmolar |
EXCEPTION |
1phase |
622563 |
201.1 |
Dmolar |
19479.3 |
Umolar |
7132.76 |
p is not a valid number |
HmolarP |
EXCEPTION |
1phase |
425157 |
254.749 |
P |
425157 |
T |
254.749 |
Two-phase inputs not supported for pseudo-pure for now |
HmolarSmolar |
EXCEPTION |
1phase |
425157 |
254.749 |
P |
425157 |
T |
254.749 |
Two-phase inputs not supported for pseudo-pure for now |
PSmolar |
EXCEPTION |
1phase |
425157 |
254.749 |
P |
425157 |
T |
254.749 |
Two-phase inputs not supported for pseudo-pure for now |
PT |
EXCEPTION |
1phase |
425157 |
254.749 |
P |
425157 |
T |
254.749 |
Two-phase inputs not supported for pseudo-pure for now |
PUmolar |
EXCEPTION |
1phase |
425157 |
254.749 |
P |
425157 |
T |
254.749 |
Two-phase inputs not supported for pseudo-pure for now |
SmolarT |
EXCEPTION |
1phase |
425157 |
254.749 |
P |
425157 |
T |
254.749 |
Two-phase inputs not supported for pseudo-pure for now |
Superancillary Plots#
The following figure shows the accuracy of the superancillary functions relative to extended precision calculations carried out in C++ with the teqp library. The results of the iterative calculations with REFPROP and CoolProp are also shown.
Note
You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.
